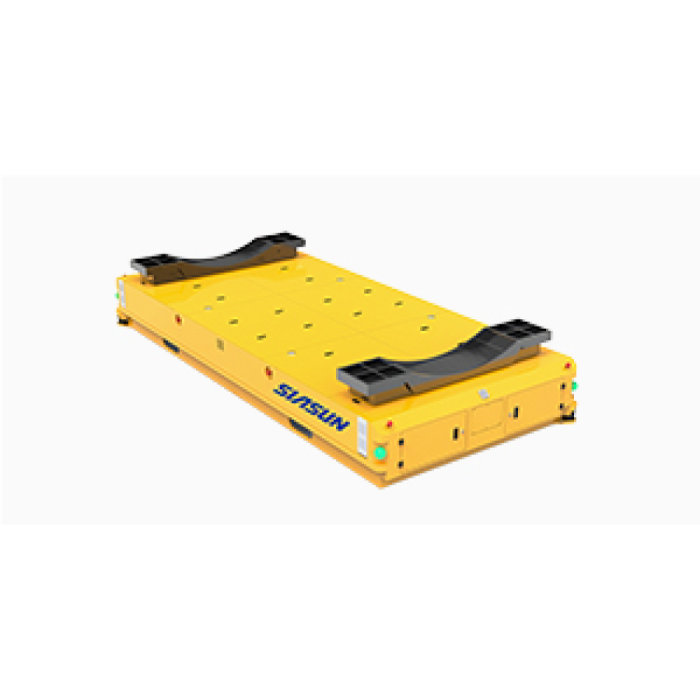

SIASUN 10,000 Kg Heavy-Duty Mobile Robot

Picture a ten-tonne assembly sitting on a factory floor with no crane overhead, no forklift big enough nearby, and a production schedule that will not wait. Moving a load like that has traditionally meant rigging, overhead lifting and a team of people watching every centimetre. The SIASUN 10,000 Kg Heavy-Duty Mobile Robot takes a different route: it slides beneath the load, raises it and carries it along a programmed path, steering itself to a defined position. For plants where heavy parts travel between workstations every day, that shift from occasional heavy lift to routine automated transport changes how a whole hall can be laid out.

Robots Europa, based in Dublin, sells and supplies the SIASUN 10,000 Kg Heavy-Duty Mobile Robot to customers across the European Union and the DACH region. Robots Europa prepares each quotation for the specific application, coordinates delivery to the site and remains the point of contact for support once the robot is in service.

Background

SIASUN and its heavy-duty programme

SIASUN is a robotics manufacturer whose heavy-duty mobile robot work dates back to 2009, when the company began investing seriously in research and development for this class of machine. More than a decade of focus on heavy loads has produced a family of platforms rather than a single model: the sources name 3T, 5T, 10T, 20T, 30T, 60T and 80T versions, and the series is described as covering a capacity range of 3–120 t. SIASUN lists these robots under its Customized Products range, which signals that each installation is expected to be configured around the customer's loads, floors and routes rather than delivered as a fixed catalogue item.

Where the 10T version sits and what drives it

Within the range, the 10T version occupies the middle ground: substantially more capable than the entry models, yet compact in ambition compared with the platforms built for the very largest structures. Across the series, SIASUN describes omnidirectional movement with zero turning radius, an optimised wheelset that balances load capacity and traction while protecting the floor, and the ability to operate either alone or in coordination with other robots. For the 10T version, navigation can be by SLAM, magnetic guidance or colour-tape guidance, which lets a site choose between a route defined in software and one marked physically on the floor. Safety is addressed with an emergency stop, an audible and visual alarm, and non-contact collision avoidance.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, weight, travel speed, battery type and capacity, operating time, charging method, IP rating, drive configuration, operating temperature range or package contents for this robot; Robots Europa confirms these at quotation.

What makes a heavy-duty mobile robot different from a forklift or an overhead crane?

A forklift carries its load ahead of it, needs aisle space to turn and depends on a driver. An overhead crane is fixed to the building and serves only the area beneath its runway. The SIASUN 10,000 Kg Heavy-Duty Mobile Robot works differently: it travels under the load, lifts it by up to 100 mm and moves it with the weight carried over its own wheelset. Because the series supports omnidirectional travel with zero turning radius, the robot can move sideways or rotate in place, which matters when a long or bulky part has to be manoeuvred between fixtures in a crowded hall.

The positioning accuracy of ±10 mm is the other decisive difference. A manually driven vehicle relies on the operator's eye; this robot arrives at a programmed point within that tolerance, so it can deliver a part directly to an assembly station or test stand rather than to a nearby set-down area. Combined with the choice of SLAM, magnetic or colour-tape navigation, that makes repeatable heavy transport something a plant can schedule rather than improvise.

Which navigation method suits my site?

SLAM navigation builds and uses a map of the environment, so routes can be changed in software as a layout evolves — useful in plants that reorganise production lines regularly. Magnetic guidance follows markers in or on the floor and suits fixed, high-repetition routes where the path rarely changes. Colour-tape guidance is the simplest to lay out and alter physically, which can make it attractive for trial installations or temporary routes. Because the 10T version supports all three, the choice can follow the site's needs; Robots Europa discusses the options with each customer when planning the installation.

Who is the SIASUN 10,000 Kg Heavy-Duty Mobile Robot for?

The 10T version is aimed at manufacturers and logistics operators whose recurring loads sit in the region of ten tonnes and who move them across essentially level floors; the gradeability of 3% points to indoor halls and gently sloped transitions rather than steep ramps. Typical buyers include automotive and construction-machinery plants moving sub-assemblies, energy-storage and new-energy producers handling heavy modules, and heavy-industry sites shifting fixtures, moulds or semi-finished products between process steps.

Where loads are noticeably lighter, the SIASUN 5T Heavy-Duty Mobile Robot may be the more proportionate choice. Where items regularly exceed what this version carries — ship sections, aerospace structures or large steel components — the SIASUN 20T Heavy-Duty Mobile Robot or the SIASUN 30T Heavy-Duty Mobile Robot are worth comparing, and the larger models in the range follow from there. The full family is gathered in the Heavy Duty Mobile Robots category, and wider plant automation options sit under Factory Robots. Since the series supports multi-robot coordination, sites with occasional oversized loads can also consider several robots working together.

What is the SIASUN 10,000 Kg Heavy-Duty Mobile Robot used for?

1. Port and container logistics — moving heavy cargo units and equipment within terminal and depot areas.
2. New energy and energy storage — transporting heavy battery modules and energy-storage assemblies between production stages.
3. Aerospace and shipbuilding — carrying components and tooling between workstations in assembly halls.
4. Automotive manufacturing — delivering bodies, frames and sub-assemblies precisely to the line.
5. Construction machinery manufacturing — moving heavy chassis and structural parts through fabrication and assembly.
6. Steel, metallurgy and heavy industry — shifting moulds, coils and fixtures through demanding process environments.

Pricing and Availability

As a customised product, the SIASUN 10,000 Kg Heavy-Duty Mobile Robot is supplied on the basis of a quotation that reflects the configuration, navigation method and site requirements. Robots Europa arranges delivery, customs and support together with the quotation. To begin, share your loads, floor conditions and routes with our team; the quotation request is available on this page.

Frequently Asked Questions

How much can the SIASUN 10,000 Kg Heavy-Duty Mobile Robot carry?

The 10T version has a payload capacity of 10 t. Heavier loads are covered by the larger versions in the SIASUN range.

How accurately does it position a load?

The positioning accuracy is ±10 mm, which allows the robot to deliver loads directly to stations and fixtures.

Which navigation methods does it support?

The 10T version supports SLAM, magnetic guidance and colour-tape guidance. The most suitable method is agreed with Robots Europa for each site.

Can it turn on the spot?

Yes. SIASUN's heavy-duty mobile robots support omnidirectional movement with zero turning radius, so they can travel sideways and rotate in place.

Can several robots work together?

The series supports both multi-robot coordination and standalone operation, so one robot can work alone or as part of a coordinated group.

What are the battery, speed and IP rating?

These details are not part of the 10T specification shown above. Please raise them with Robots Europa when you request your offer.

Where can I buy the SIASUN 10,000 Kg Heavy-Duty Mobile Robot and what does it cost?

Robots Europa supplies it across the EU and the DACH region. The cost depends on configuration, so it is set out in a quotation you can request on this page.

Summary

Ten tonnes no longer has to mean a crane, a rigging crew and a stalled schedule. The SIASUN 10,000 Kg Heavy-Duty Mobile Robot turns heavy transport into a repeatable, programmed task: a 10 t payload, a 100 mm lift, ±10 mm positioning, three navigation options and a safety package with emergency stop, alarms and non-contact collision avoidance. It sits in the middle of a range built on SIASUN's heavy-duty work since 2009, with lighter and heavier siblings for loads at either side. Robots Europa quotes, supplies and supports it across Europe — for anyone planning heavy-load automation, this page is the starting point.
