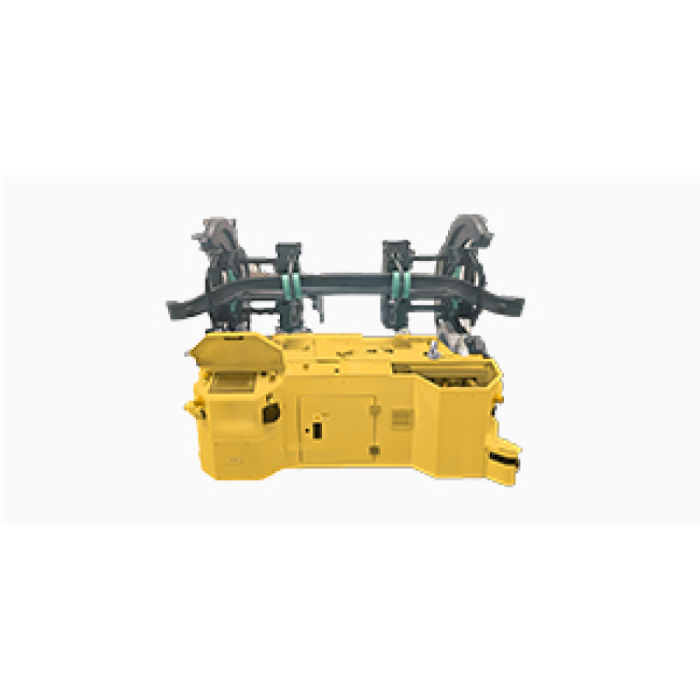

SIASUN Axle Base Line Assisted Assembly Mobile Robot (Axle Base Line Assisted Assembly Mobile Robot)

On an axle base line, the slowest moment is rarely the bolting or the torquing. It is the turn: the point at which a heavy, awkward axle has to be rotated so that an operator can reach its underside, and where a hoist, a fixture and several pairs of hands have traditionally been called in. The SIASUN Axle Base Line Assisted Assembly Mobile Robot moves that moment onto a mobile platform. It carries the axle along the line and turns it through ±90° where the work demands, so the component arrives in front of the operator in the right attitude, rather than the operator bending and stretching around it.

Robots Europa, based in Dublin, supplies this robot to automotive manufacturers and system integrators across the European Union and the DACH region. Robots Europa prepares the quotation, coordinates delivery to the plant and remains the point of contact for support once the robot is at work on the line.

Background

SIASUN and its industrial lineage

SIASUN is a Chinese robotics manufacturer whose range covers industrial arms, mobile robots and complete factory automation systems. Its mobile robot family extends from process-specific vehicles such as this one to heavy-duty platforms built to move large loads across a plant floor. That breadth matters to a buyer: a robot designed for one assembly task is easier to introduce when it comes from a maker that also understands the wider logistics of the factory around it. Robots Europa offers a selection of these machines in its Mobile Robots category.

A mobile robot built around one process

Most automated guided vehicles are generalists: they lift a load, take it somewhere and set it down. This robot is different in intent. It was developed specifically for axle base-line operations in automotive manufacturing, and its defining feature is not transport alone but the combination of transport and reorientation. A chain-and-sprocket drive powers the flipping function, giving a smooth and reliable turn of the axle component, while a compact structure keeps the platform stable under load yet agile enough to work in the confined space beside an assembly line. The stated aim is to reduce manual workload and give axle assembly an efficient, intelligent and flexible handling solution.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, weight, battery type and capacity, travel speed, runtime, charging time, safety sensors, IP rating, operating temperature, power supply voltage, the contents of the delivery or the software and dispatch system; Robots Europa confirms these at quotation.

How does the ±90° flipping function change axle assembly?

An axle has work on more than one face. Brackets, brake components, sensors and fasteners may need fitting from above, from the side and from beneath, and on a conventional line each change of face means stopping, rigging a lift and turning the part by hand or with an overhead crane. Every one of those interventions costs time and puts operators close to a suspended, heavy component.

By building the turn into the vehicle itself, this robot lets the axle be presented at the angle each station needs. The rotation range of ±90° covers a quarter-turn in either direction, and with a payload capacity of 700 kg the platform is sized for real axle assemblies rather than light sub-components. The chain-and-sprocket drive behind the flip delivers a smooth, controlled movement, which is what an assembler wants when a large part is changing orientation a short distance away. Once the axle is turned, the braking system, combining a servo motor with a mechanical brake, holds the platform where it has stopped.

The practical result is ergonomic as much as mechanical: operators work on a component that has been brought to a comfortable position, rather than adapting their posture to a component that cannot easily be moved.

Why does tape and QR code navigation suit an axle base line?

Assembly lines are, by design, repetitive. The robot travels the same route and stops at the same stations shift after shift, so a fixed guidance path is often a better match than free navigation. This robot follows colour tape on the floor, with QR code tape providing reference points along the route; a magnetic strip is available as an option for plants that prefer it.

The figures show why that approach works for assembly. Navigation accuracy along the path is ±10 mm, and positioning accuracy at the stopping point is ±5 mm. For an operator, or a fixture waiting to receive the axle, that tighter positioning tolerance is the number that counts: the part arrives where the station expects it. The drive arrangement of one drive wheel with two caster wheels is a simple, compact layout, consistent with a robot meant to work alongside a line rather than roam a warehouse. Floor tape is also straightforward to lay, inspect and reroute when a line is rebalanced, which suits plants that adjust their station layout between model years.

Who is the SIASUN Axle Base Line Assisted Assembly Mobile Robot for?

The first audience is the automotive plant that runs a dedicated axle base line and wants to remove manual handling from it. Production engineers looking to reduce lifting effort, shorten the changeover between work faces and steady the rhythm of the line will recognise the problem this robot was built to solve.

The second audience is the system integrator. Integrators designing a new axle cell, or upgrading an existing one, need a mobile platform whose purpose already matches the process, so that their engineering effort goes into the stations and the controls rather than adapting a general-purpose vehicle.

Health and safety managers form a third group. Reducing the number of times a heavy axle is lifted and turned by hand is a direct way to address ergonomic risk on the line.

Not every assembly task is an axle, however. Plants building trucks, buses or other commercial vehicles may wish to compare the SIASUN Commercial Vehicle Assembly Mobile Robot (Commercial Vehicle Assembly Mobile Robot), and where the requirement is moving large fixtures or heavy equipment across the factory rather than presenting a component to an operator, the SIASUN heavy-duty platforms such as the SIASUN 3T Heavy-Duty Mobile Robot are the more natural starting point. The wider choice of production-floor automation is gathered under Factory Robots.

What is the SIASUN Axle Base Line Assisted Assembly Mobile Robot used for?

1. Axle transport along the base line – carrying axle components from station to station on a fixed, tape-guided route.
2. Turning axles between work faces – rotating the component through ±90° so that each station can reach the face it works on.
3. Precise presentation at stations – stopping within the stated positioning accuracy so the axle arrives where the operator or fixture expects it.
4. Ergonomic operator support – bringing a heavy part to a comfortable working angle instead of relying on manual lifting.
5. Replacing hoist and crane steps – reducing the overhead handling traditionally used to reorient axles mid-assembly.
6. Flexible line layouts – following floor tape that can be relaid when stations are rebalanced or a new model is introduced.

Pricing and Availability

Robots Europa supplies this robot on a quotation basis, because each axle line differs in route, station layout and integration requirements. Share the details of your line, including the axle type, the number of stations and the guidance method you prefer, and Robots Europa will prepare a quotation and confirm the outstanding specifications against the manufacturer's datasheet. Delivery, customs clearance and after-sales support are arranged together with the quotation. The request form for a tailored quotation is available on this page.

Frequently Asked Questions

What payload can the robot carry?

The robot has a payload capacity of 700 kg, which suits axle components handled on an automotive base line.

How far can the robot turn an axle?

The flipping function rotates the component through ±90°. The movement is powered by a chain-and-sprocket drive for a smooth, reliable turn.

How does the robot navigate?

It follows colour tape on the floor with QR code tape as reference markers. A magnetic strip is available as an optional alternative.

How accurately does it stop at a station?

Positioning accuracy is ±5 mm, while navigation accuracy along the route is ±10 mm.

What braking system does it use?

Braking combines a servo motor with a mechanical brake, holding the platform in place at each station.

Is it suitable for industries other than automotive?

The robot was developed for axle base-line operations in automotive manufacturing, and that is the application it is designed for. For other handling tasks, Robots Europa can recommend a better-suited SIASUN mobile robot.

Where can I buy the SIASUN Axle Base Line Assisted Assembly Mobile Robot and what does it cost?

Robots Europa supplies the robot across the EU and the DACH region. The price depends on configuration and integration, so it is set out in a tailored quotation, which you can request on this page.

Summary

The turn of an axle is where assembly lines have long lost time and asked most of their operators. This robot answers that problem directly: it carries a 700 kg payload along a tape-guided route, stops within ±5 mm of its station and rotates the axle through ±90° on a chain-and-sprocket drive, so the part meets the operator in the attitude the work requires. It is a focused machine for a focused task, and it is supplied, delivered and supported by Robots Europa throughout the EU and the DACH region. For a plant ready to take the hoist out of its axle line, this page is the starting point.
