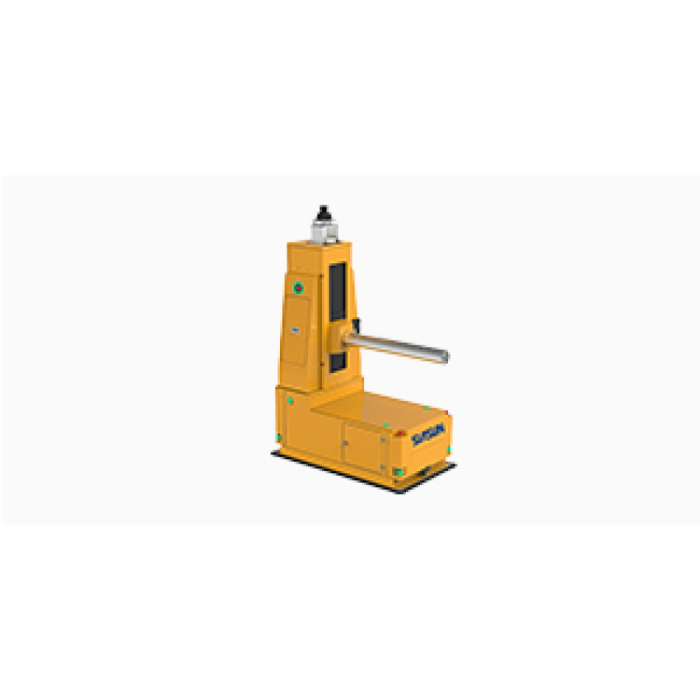

SIASUN Cantilever Shaft Conveyor Mobile Robot (Cantilever Shaft Conveyor Mobile Robot)

Between two conveyor lines there is always a gap, sometimes a short stretch of floor and sometimes an entire hall, and every pallet that has to cross it is a point where automation can stall. The SIASUN Cantilever Shaft Conveyor Mobile Robot is designed to close that gap. It drives to a fixed line, aligns with it and takes over or hands on a palletised load with its own conveyor, with no forklift and no operator in between. Fixed conveyors are efficient but rigid, and manual transport is flexible but slow. This robot offers a third option: a conveyor that travels to wherever the next process step happens to be.

Robots Europa, based in Dublin, supplies the SIASUN Cantilever Shaft Conveyor Mobile Robot to manufacturers and logistics operators throughout the EU and the DACH region. We prepare each quotation for the specific site and its conveyor interfaces, arrange delivery and customs clearance, and remain your point of contact for technical support once the robot is in operation.

Background

SIASUN and its mobile robot portfolio

SIASUN is a Chinese robotics manufacturer whose range covers industrial robots, mobile robots and complete intralogistics systems. Its mobile robot portfolio runs from conveyor and transfer platforms such as this one to heavy-duty carriers for very large loads. All of SIASUN's mobile robot solutions are supported by the IMRS 2.0 platform, which provides multi-robot dispatching, route optimisation, data analytics and digital twins. A single conveyor robot is therefore not an isolated machine; it can become one unit in a coordinated fleet that is planned, monitored and modelled from one control layer.

A conveyor on an AGV base

The robot is a high-efficiency material transfer platform. Its foundation is an AGV base, and it is integrated with roller or chain conveyors. Load handling uses a cantilever shaft, and the conveying deck is raised and lowered by an electric lead screw. The concept is straightforward: the robot docks precisely with floor conveyor lines so that palletised loads can be transferred from line to robot and from robot to line. Multi-navigation fusion and millimetre-level alignment are what make that handover dependable, and the platform is built for industrial-grade reliability in long-term 24/7 running.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the specific navigation method, positioning or docking accuracy, battery type and capacity, charging method, travel speed, dimensions, safety sensors, IP rating or conveyor load size; these are confirmed at quotation.

What does a lifting range of 750-1800 mm mean for line integration?

Conveyor lines in a factory are rarely all at one height. An infeed line at a process machine, a buffer line at a warehouse interface and a transfer station at a packing area may each sit at a different level, chosen for the equipment around them rather than for the vehicle that serves them. A transfer robot with a single fixed deck height can only serve lines that match it, which pushes the cost of integration onto the plant layout.

The SIASUN Cantilever Shaft Conveyor Mobile Robot raises its conveyor between 750 and 1800 mm using an electric lead screw. That range allows one robot type to dock with lines at quite different levels, so the robot adapts to the existing installation rather than the other way round. An electric lead screw also means that lifting is part of the robot's own electrical system, with no separate hydraulic circuit to maintain. For planners, the practical consequence is that the heights of all the conveyor interfaces on a route should be listed at an early stage, so that Robots Europa can prepare the quotation for the actual site.

How does a cantilever shaft conveyor robot differ from a conventional lifting AGV?

Many mobile robots carry loads by driving underneath a rack or cart and lifting it. That works well where the load arrives on its own carrier, but it requires a carrier at every station. The cantilever shaft approach is different: the robot brings a powered roller or chain conveyor to the line and moves the pallet across on rollers or chains. The load passes from conveyor to conveyor, which means that existing floor conveyor lines can remain the backbone of the material flow while the robot replaces the fixed sections between them.

Precision matters here. A conveyor-to-conveyor transfer only works if the two decks line up, which is why SIASUN pairs this design with multi-navigation fusion and millimetre-level alignment. With a rated payload of ≤1000 kg and a robot weight of 2200 kg, the platform is a substantial machine, and the drive mode of dual-wheel differential or steering wheel reflects that it is intended for industrial floors and repeated, accurate approaches rather than light-duty transport.

Who is the SIASUN Cantilever Shaft Conveyor Mobile Robot for?

The clearest fit is lithium battery manufacturing. The robot supports end-to-end intralogistics across electrode fabrication, cell assembly, and module and PACK processes, where palletised material moves through a long chain of process steps and the transfer points between them are numerous. Battery plants planning a new line, or replacing manual transport between existing conveyors, are the primary audience.

Beyond batteries, the robot suits any production or logistics operation that already relies on floor conveyor lines and needs to link them flexibly: assembly plants, automated warehouses and process industries in which pallets move from one conveyor to another. Operations running several shifts will value its design for long-term 24/7 running, and sites planning a fleet can bring it under IMRS 2.0 dispatching alongside other SIASUN robots. Those who wish to model a fleet before installation may also want to look at the SIASUN Mobile Robot Digital Twin System.

Where loads exceed this robot's rated payload of ≤1000 kg, a carrier from SIASUN's heavy-duty range, such as the SIASUN 3T Heavy-Duty Mobile Robot, is likely to be the better starting point. The complete range is presented in our Mobile Robots category, and further automation equipment for production environments can be found under Factory Robots.

What is the SIASUN Cantilever Shaft Conveyor Mobile Robot used for?

1. Electrode fabrication logistics: moving palletised materials between process stations at the start of the battery production chain.
2. Cell assembly supply: linking assembly lines with automated, conveyor-to-conveyor transfers instead of manual handling.
3. Module and PACK processes: carrying loads through the later stages of battery production to the final pack lines.
4. Line-to-line transfer: replacing fixed conveyor sections between separate floor conveyor lines with a mobile link.
5. Buffer and warehouse interfaces: docking with conveyors at storage or staging areas at different heights within the lifting range.
6. Fleet-based intralogistics: operating as part of a multi-robot system dispatched and analysed through IMRS 2.0.

Pricing and Availability

The SIASUN Cantilever Shaft Conveyor Mobile Robot is supplied by quotation, because the configuration depends on your conveyor interfaces, load types, routes and fleet size. Please send us the heights of your conveyor lines, the pallets you handle and a short description of the material flow, and Robots Europa will prepare a quotation for your site. Delivery, customs and support are arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

What loads can the robot carry?

It handles palletised loads with a rated payload of ≤1000 kg, transferred on its integrated roller or chain conveyor.

How high can the conveyor be raised?

The lifting height is 750-1800 mm, driven by an electric lead screw. This allows docking with floor conveyor lines at different heights.

How does the robot align with a fixed conveyor line?

It uses multi-navigation fusion and millimetre-level alignment for docking with floor conveyor lines. That precision is what makes a conveyor-to-conveyor handover dependable.

Can it run around the clock?

The robot is built for industrial-grade reliability in long-term 24/7 running. Robots Europa will take your shift pattern into account when preparing the quotation.

Can several robots work together?

Yes. SIASUN's mobile robot solutions are supported by the IMRS 2.0 platform, which provides multi-robot dispatching, route optimisation, data analytics and digital twins.

Is it only suitable for battery manufacturing?

Lithium battery production is its principal application, from electrode fabrication to module and PACK processes. It is also suitable for other sites that move palletised loads between floor conveyor lines.

Where can I buy the SIASUN Cantilever Shaft Conveyor Mobile Robot and what does it cost?

Robots Europa supplies the robot throughout the EU and the DACH region. The cost depends on configuration and project scope, so it is provided in a quotation prepared for your site.

Summary

Every gap between conveyor lines is a place where material waits. The SIASUN Cantilever Shaft Conveyor Mobile Robot turns those gaps into a link that can be reconfigured: an AGV base with an integrated roller or chain conveyor, a cantilever shaft for load handling, a lifting height of 750-1800 mm and a rated payload of ≤1000 kg. Multi-navigation fusion and millimetre-level alignment make the handover to fixed lines dependable, and IMRS 2.0 places the robot within a coordinated fleet. For lithium battery producers and other conveyor-based operations seeking a moving conveyor rather than a fixed one, this page is the starting point.
