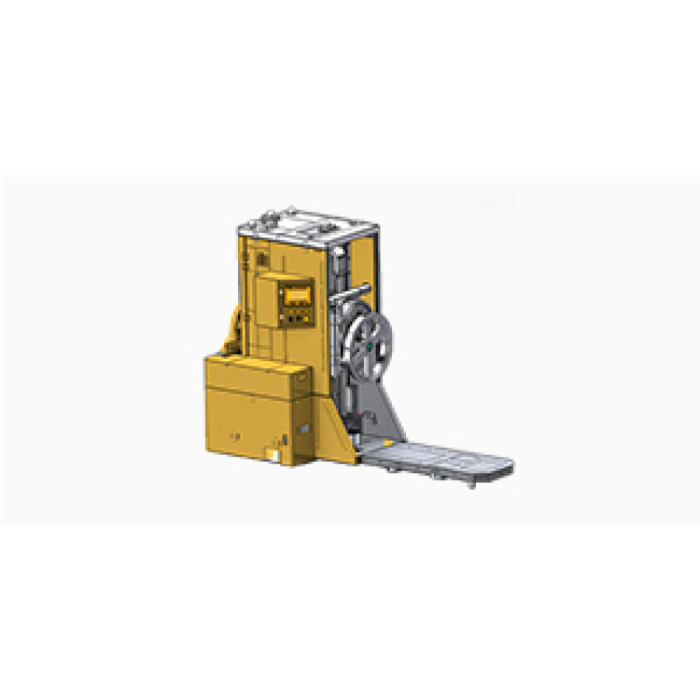

SIASUN Engine Assisted Assembly Mobile Robot (Engine Assisted Assembly Mobile Robot)

An engine is one of the heaviest single parts a vehicle plant moves, yet it must meet its mounting points with the patience of a watchmaker. The SIASUN Engine Assisted Assembly Mobile Robot is built around that contradiction. It carries a powertrain unit along a guided route, stops where the station expects it and raises it with a screw lift to the height the operator needs. The robot takes the weight. The people on the line keep control of the fit.

Robots Europa supplies the SIASUN Engine Assisted Assembly Mobile Robot from Dublin to manufacturers across the EU and the DACH region. Robots Europa handles the quotation, the delivery and after-sales support, and can place the robot alongside the other SIASUN platforms in our Mobile Robots range.

Background

SIASUN and its industrial lineage

SIASUN is a Chinese robotics manufacturer based in Shenyang. Its roots lie in the robotics research of the Chinese Academy of Sciences. The company builds industrial robots, mobile robots and complete automation lines, and the automotive sector has long been one of its main markets. That background shows in this robot. It is not a general-purpose transporter with an engine cradle bolted on. It is a vehicle designed from the outset for engine assembly work, in a portfolio that also includes heavy-duty mobile platforms for much larger loads.

A carrier that is also a workstation

Most automated guided vehicles in a plant are judged on how reliably they get from A to B. An assisted assembly robot is judged as much on what happens once it has stopped. This SIASUN model combines guided travel with a screw lift mechanism, so the engine can be brought to an ergonomic working height at each station rather than staying at a fixed deck level. Navigation runs on colour tape combined with QR code tape, with a magnetic strip available as an option. That keeps the route fixed and repeatable, which is what an assembly sequence calls for.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, the weight, the battery capacity, the travel speed, the charging method, the IP rating, the lifting speed or the operating time; Robots Europa confirms these at quotation.

Why does a screw lift with a long stroke matter in engine assembly?

Engine dressing and installation involve a sequence of tasks at different heights. Hoses, harnesses and ancillaries are fitted at one level. Mounts and fasteners underneath the unit call for another. With a fixed-height carrier, the operator has to bend, stretch or reach for an overhead hoist to cope. A lift that travels up to 700 mm lets the robot bring the engine to the work instead.

The choice of a screw lift is relevant here. In general, a screw-driven lift holds its position mechanically once it stops, which suits a load that people will be working on and around. It changes height steadily rather than abruptly, and it does not depend on a hydraulic circuit to keep the load raised. With a payload capacity of 2000 kg, the robot has room for a complete engine together with the fixture or pallet that carries it. Integrators should still check the combined mass of their engine and tooling against that rating.

Braking follows the same logic. The servo motor provides controlled deceleration, and a mechanical brake holds the vehicle once it has stopped. A stationary assembly platform should not creep while an operator is tightening a mount.

How does tape and QR code navigation compare with free navigation on an assembly line?

Laser-based free navigation is popular in warehouses, where routes change and the layout can be remapped. An engine line asks for something different. The route is defined by the sequence of stations, and it changes only when the line itself is re-engineered. Colour tape gives the robot a continuous path to follow. QR code tape adds fixed reference points along it, so the vehicle knows exactly where it is at each stop.

That arrangement explains the two accuracy figures. Navigation accuracy of ±10 mm describes how closely the robot follows the path while it travels. Positioning accuracy of ±5 mm describes how precisely it comes to rest at a station. For an operator lining up an engine with tooling, fixtures or a body, the second figure matters most. A carrier that stops in the same place every cycle makes the rest of the station easier to design.

The optional magnetic strip gives plants another route-marking choice, for example where floor traffic or cleaning routines are hard on surface tape. Robots Europa can advise on which method suits a given hall.

Who is the SIASUN Engine Assisted Assembly Mobile Robot for?

The obvious buyer is a vehicle manufacturer or powertrain plant that wants to replace conveyors, manual trolleys or overhead handling on an engine assembly or dressing line. Such plants gain a flexible carrier that follows a fixed route and doubles as a height-adjustable workstation.

Tier-one suppliers that assemble engines, transmissions or comparable heavy modules form a second group, since the same principle of carrying, stopping precisely and lifting applies to their sub-assembly cells. Manufacturers of industrial engines, generator sets and similar heavy machinery are a third. Their volumes may be lower, but the ergonomic problem of working on a heavy unit at the right height is the same. Systems integrators planning a line for any of these customers will also find the robot a useful building block within a wider Factory Robots concept.

Where the task is pure heavy transport rather than assisted assembly, SIASUN's heavy-duty platforms are the more natural starting point, for instance the SIASUN 3T Heavy-Duty Mobile Robot or the SIASUN 5T Heavy-Duty Mobile Robot. Robots Europa can help compare these with the engine assembly robot.

What is the SIASUN Engine Assisted Assembly Mobile Robot used for?

1. Engine dressing lines: carrying the engine from station to station while ancillaries, harnesses and hoses are fitted.
2. Engine-to-body installation: presenting the powertrain at a defined height and position for joining with the vehicle body.
3. Ergonomic height adjustment: raising or lowering the unit so operators work upright rather than bending or reaching.
4. Sub-assembly transfer: moving finished engine sub-assemblies between cells along a fixed, repeatable route.
5. Replacing fixed conveyors: providing a reconfigurable alternative where a permanent conveyor would limit future line changes.
6. Heavy module assembly: supporting assembly of transmissions or comparable heavy components where precise stopping and lifting are needed.

Pricing and Availability

Robots Europa supplies the SIASUN Engine Assisted Assembly Mobile Robot on a quotation basis, because each engine line differs in route length, station layout, fixtures and the choice of navigation tape. Delivery, customs and support are arranged together with the quotation. To start the process, send a short outline of your line and the engine you handle, and the quotation request is available on this page.

Frequently Asked Questions

What payload can the robot carry?

The SIASUN Engine Assisted Assembly Mobile Robot has a payload capacity of 2000 kg. Check the combined mass of the engine and any fixture or pallet against that rating.

How far can the lift travel?

The screw lift mechanism offers a maximum travel of 700 mm, so the engine can be brought to different working heights along the line.

How does the robot navigate?

It follows colour tape combined with QR code tape, and a magnetic strip is available as an option. The route is therefore fixed and repeatable, which suits an assembly sequence.

How precisely does it stop at a station?

Positioning accuracy is ±5 mm, and navigation accuracy along the route is ±10 mm.

What kind of drive and braking does it use?

The drive system consists of 1 drive wheel and 4 caster wheels. Braking combines a servo motor with a mechanical brake.

Can the robot be used for components other than engines?

The robot is designed for engine assembly work. Its carry, stop and lift principle can also suit comparable heavy modules such as transmissions, and Robots Europa can assess whether a specific component and fixture fit the application.

Where can I buy the SIASUN Engine Assisted Assembly Mobile Robot and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region from Dublin. The cost depends on your configuration and is set out in an individual quotation, which you can request on this page.

Summary

The SIASUN Engine Assisted Assembly Mobile Robot reconciles weight and precision. It carries a payload of up to 2000 kg and stops to within ±5 mm. Its screw lift raises the engine through up to 700 mm, and its brakes hold it still while people work. Tape and QR code guidance keeps the route as repeatable as the assembly sequence it serves. For plants that want engines to arrive heavy and leave fitted, with operators working at the right height, Robots Europa provides the quotation, the delivery and the support, and this page is the starting point.
