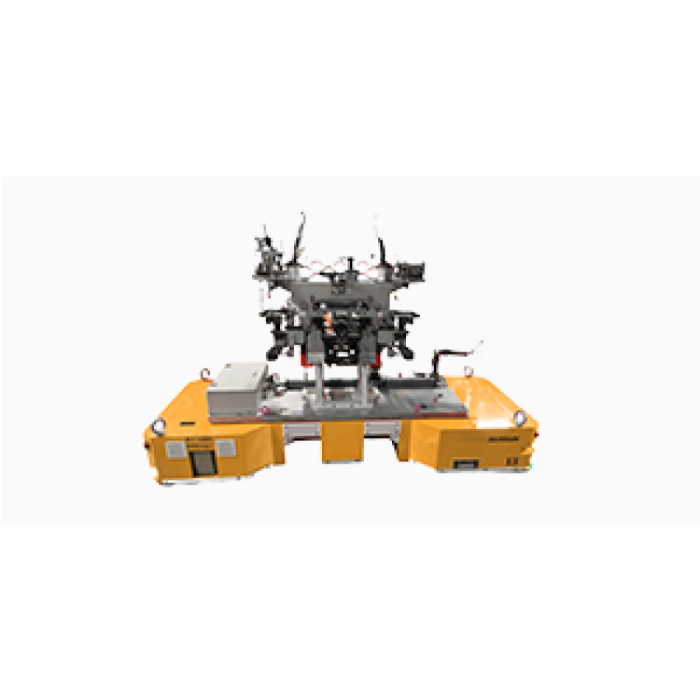

SIASUN Front-End Module Assisted Assembly Mobile Robot (Front-End Module Assisted Assembly Mobile Robot)

A finished front-end module is one of the most awkward loads on any car assembly line: wide, heavy and expected to meet the body-in-white with almost no margin for error. Lifting it by hoist and guiding it by hand asks a great deal of operators, shift after shift. The SIASUN Front-End Module Assisted Assembly Mobile Robot approaches the task from the floor instead. It carries the module on a compact, tape-guided chassis and brings it into position with millimetre-level alignment, so that the people at the station can concentrate on fastening rather than steering.

Robots Europa, based in Dublin, supplies this SIASUN robot to automotive manufacturers and system integrators across the European Union and the DACH region. We prepare each quotation against the plant's own station layout and navigation preferences, and we remain the point of contact for delivery, commissioning questions and after-sales support.

Background

SIASUN and its place in industrial robotics

SIASUN is a Chinese robotics manufacturer based in Shenyang, with roots in the research community there and a broad portfolio that covers industrial arms, cleanroom handling and mobile robots for factory logistics. Its mobile robot range runs from station-level assistants such as this model to heavy-duty platforms built for large loads, which gives automotive customers one supplier for several stages of material flow. You can see the wider family in our Mobile Robots category.

A robot built around one process

Many mobile robots are general-purpose transporters adapted to a task after purchase. This one was developed specifically for modular front-end assembly processes in automotive manufacturing. Its compact structure and smooth forward and turning motion allow it to work within complex station layouts and tight production spaces, which matters on a final assembly line where conveyors, tooling and operators all compete for the same square metres. Guidance relies on colour tape combined with QR code tape, with magnetic strip navigation available as an option, and the docking manoeuvre is designed to achieve millimetre-level alignment with the receiving station.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, weight, battery capacity, charging method, travel speed, operating time, safety certifications, IP rating, contents of the delivery or the software and fleet management arrangements; all of these are confirmed at quotation.

How does tape and QR code navigation suit a front-end assembly station?

The navigation method tells you a good deal about how this robot is meant to live on the shop floor. Colour tape provides a continuous, visible path that the robot follows between pick-up and the assembly point. QR code tape adds discrete reference markers along that path, giving the controller fixed points from which to correct its position. The combination yields a navigation accuracy of ±10 mm along the route and a positioning accuracy of ±5 mm at the stopping point.

For a front-end module, that distinction is meaningful. On the way to the station, a few millimetres of lateral drift do not matter much; at the station, the module must arrive where the operators and fixtures expect it. A route defined by tape and codes is also predictable, which simplifies planning with the people who share the aisle and makes the robot's path easy to see and to keep clear.

Where a plant already uses magnetic guidance, or where floor conditions make tape less practical, the optional magnetic strip allows the robot to fit into existing infrastructure. Which method is right depends on the floor, the traffic and the layout, and that choice is best made with a drawing of the line in front of us.

Why does the drive and braking arrangement matter?

The robot moves on one drive wheel supported by four caster wheels. This layout keeps the chassis compact and lets it turn smoothly, which is what allows it to work in tight spaces between stations rather than needing a wide, dedicated corridor. For a load of up to 500 kg, stability on approach and while stationary is just as important as manoeuvrability.

That is where the braking system comes in. Braking combines the servo motor with a mechanical brake: the servo provides controlled deceleration as the robot closes on its target, while the mechanical brake holds the robot in place once it has stopped. At an assisted assembly station, where operators work beside the load and may push or pull on the module as they fit it, a robot that stays firmly where it has docked is a basic requirement rather than a refinement.

Who is the SIASUN Front-End Module Assisted Assembly Mobile Robot for?

The most obvious buyer is the vehicle manufacturer running a final assembly line on which front-end modules are fitted to the body. For production engineers there, the robot offers a way to bring heavy modules to the station without relying on overhead hoists and manual guidance, and to make each presentation of the module consistent.

Tier-one suppliers that assemble or sequence front-end modules are a second group. Where modules are prepared close to the customer's line, a tape-guided robot can link the supplier's area with the point of fitting in a controlled, repeatable way.

System integrators building assembly cells for automotive clients form a third segment. Because the robot follows tape, QR codes or magnetic strip, it can be planned into a cell design alongside conveyors, fixtures and workstations without a full mapping project.

Plants whose loads exceed this robot's 500 kg capacity, such as complete subassemblies, tooling or large components, are better served by SIASUN's heavy-duty platforms, for example the SIASUN 3T Heavy-Duty Mobile Robot. Further automation for production halls is collected in our Factory Robots category.

What is the SIASUN Front-End Module Assisted Assembly Mobile Robot used for?

1. Front-end module presentation: bringing a prepared module to the body on the assembly line for fitting.
2. Assisted assembly: holding the module steady at the station while operators align and fasten it.
3. Line-side material transfer: moving modules from a preparation or buffer area to the point of use.
4. Tight-station logistics: working in compact station layouts where larger vehicles cannot turn.
5. Repeatable docking: stopping at the same point on every cycle so that fixtures and tooling line up.
6. Ergonomic improvement: reducing the manual handling of heavy, bulky parts at the assembly station.

Pricing and Availability

The robot is supplied on a quotation basis, because the right configuration depends on your line: the navigation method, the route layout and the interface to your station all shape the final offer. Send us a description of the process, a layout drawing if you have one, and any requirements on documentation or conformity, and Robots Europa will prepare a quotation tailored to your line. Delivery, customs clearance and support are arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

What payload does the robot carry?

The payload capacity is 500 kg, which covers the front-end modules this robot was developed to handle.

How accurate is the robot when it stops?

Positioning accuracy is ±5 mm and navigation accuracy along the route is ±10 mm. Docking is designed for millimetre-level alignment with the station.

Which navigation methods are supported?

The robot navigates by colour tape combined with QR code tape. Magnetic strip navigation is available as an option where a plant prefers it.

How does the robot hold its position during assembly?

Braking combines the servo motor with a mechanical brake, so the robot decelerates under control and is then held in place mechanically.

Will it fit into a crowded assembly area?

The robot has a compact structure with smooth forward and turning motion, and it was designed for complex station layouts and tight production spaces.

What if my loads are heavier than 500 kg?

This robot is designed around front-end modules within its 500 kg payload. For heavier loads, SIASUN's heavy-duty mobile robots are the more suitable choice.

Where can I buy the SIASUN Front-End Module Assisted Assembly Mobile Robot and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on configuration and integration, so we provide it in a tailored quotation that you can request on this page.

Summary

Fitting a front-end module has always meant reconciling a heavy, unwieldy part with a tight tolerance at the body. This SIASUN robot resolves that tension at floor level: a 500 kg payload on a compact single-drive chassis, guided by colour tape and QR codes, stopping to ±5 mm and held there by a servo and mechanical brake combination. It is a specialist built for one demanding step of automotive assembly rather than a general transporter adapted to it, and Robots Europa works through the configuration with you so that it suits your line. For plants looking to take the strain out of the marriage of module and body, this page is the starting point.
