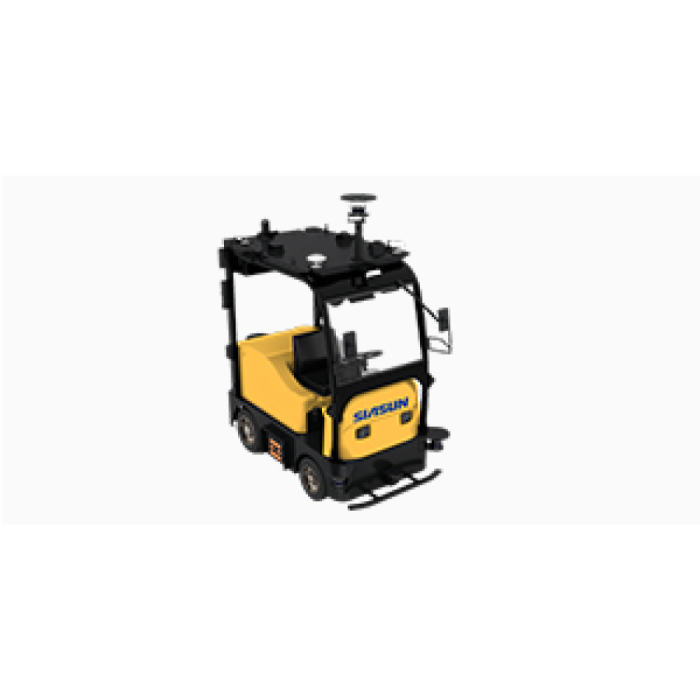

SIASUN G-5-6X (G-5-6X)

On most industrial parks the heaviest loads never travel inside a production hall. They wait on a trailer at a loading bay, then cross open roads, yards and junctions between buildings, in rain, at night and among lorries and pedestrians. A driver still couples the tractor, drives it and uncouples it again, shift after shift. The SIASUN G-5-6X (G-5-6X) takes that whole cycle on itself. It is an outdoor autonomous tractor that finds its way by fusing several positioning technologies, docks with its carrier unaided and hauls a rated towing load of 5000 / 6000 kg from one end of the site to the other.

Robots Europa, based in Dublin, supplies the SIASUN G-5-6X to customers throughout the European Union and the DACH region. We prepare each quotation against the site in question, coordinate delivery to your premises and remain your point of contact for support once the robot is in service.

Background

SIASUN and its robotics lineage

SIASUN is a Chinese manufacturer of industrial robots and automation systems, headquartered in Shenyang and rooted in the research of the Shenyang Institute of Automation of the Chinese Academy of Sciences. Over the years its catalogue has grown from robot arms into a broad family of mobile robots for factory and warehouse logistics, from compact under-ride lift units that slip beneath racks and carts to heavy tractors built for outdoor work. The G-series belongs to the second group. The sources name four versions: the G-5-6X described here, the G-8-15X, the G-20-30X and the G-40X. Each is a separate model with its own figures, and only the figures for the G-5-6X appear on this page.

Fusion navigation and patented hitching

Steering a vehicle across an open site poses a different problem from following an aisle in a warehouse. Satellite signals weaken beside tall buildings, the surroundings change with every parked lorry, and light and weather vary through the day. The G-5-6X answers this with multi-sensor fusion navigation. It combines 3D LiDAR, GNSS satellite positioning, inertial navigation and vision sensors, and its positioning rests on 3D SLAM, an IMU and RTK correction for high accuracy. Together these give the vehicle precise localisation and intelligent path planning in complex, changing outdoor environments. The second pillar is SIASUN's patented automatic hitching and unhitching technology, which lets the tractor dock with and separate from the carrier on its own. Above the vehicle sits the IMRS 2.0 platform. It handles multi-robot dispatching, route optimisation, data analytics and digital twins, so that a single tractor can become part of a coordinated fleet.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, the weight, the battery capacity, the battery type and charging method, the gradeability, the IP rating, the operating temperature range, the positioning accuracy, the hitch and carrier type or the contents of the delivery; Robots Europa confirms each of these with your quotation.

What makes the G-5-6X different from an indoor AGV?

An indoor automated guided vehicle usually works in a controlled space. The floor is level, the light is constant, and markers, reflectors or a fixed map tell it where it is. Take the same vehicle outside and every one of those certainties disappears. The G-5-6X is designed from the start for the outdoor case. GNSS with RTK correction gives it a reference across open ground. 3D SLAM with LiDAR keeps it located where buildings block the sky. The IMU bridges the moments when either source falters, and the vision sensors add another view of the scene. Since no single sensor carries the whole task, the vehicle copes with the gaps that would stop a single-method system.

The drivetrain reflects the same purpose. A towed load of this class has considerable momentum, so the G-5-6X uses hydraulic power-assisted braking rather than the lighter brakes typical of indoor platforms, and it drives through its rear wheels. Its travel speeds of 2.2 m/s without a load and 1.5 m/s at full load suit the distances of an industrial park, where routes between buildings are far longer than the runs inside a hall. The safety design is also built for unattended work outdoors. Remote monitoring, sensor self-check, alarms and fail-safe protection mean that a fault is reported and contained rather than left to an operator who may be nowhere nearby.

How does automatic hitching change a towing operation?

On a conventional towing route, autonomy often ends at the coupling. A vehicle may drive itself between stations, but someone still has to walk out, line up the drawbar and secure the carrier, then repeat the task in reverse at the destination. Every one of those interventions ties a person to the robot's timetable, and that is precisely what automation was meant to remove.

SIASUN's patented automatic hitching and unhitching technology closes that gap. The tractor docks with the carrier and separates from it by itself, so a full cycle runs without hands-on involvement: approach, couple, transport, release. In practice this lets loaded carriers be staged at a bay and collected when the dispatch system calls for them, while the tractor moves on to its next job instead of waiting to be loaded. Combined with IMRS 2.0 dispatching and SIASUN's stated aim of fast, flexible, scalable 7×24 operation, the result is a towing service that can run through night shifts and weekends on the same terms as the day shift. As the hitch and carrier type are not published, compatibility with your existing trailers is one of the first points we settle when we prepare your quotation.

Who is the SIASUN G-5-6X for?

The G-5-6X addresses organisations whose material has to cross open ground rather than stay under one roof. Manufacturing campuses with several production buildings are a natural fit, as are sites that link a central warehouse with outlying assembly halls. Logistics parks and distribution centres that shuttle trailers between docks, buffer yards and cross-docking areas face the same task. So do operators who want to move heavy internal transport away from manned tractors for reasons of safety, labour availability or round-the-clock operation.

It also suits planners who think in fleets rather than single vehicles. The IMRS 2.0 platform coordinates several robots, optimises their routes and supports digital twins, so a site can start with one tractor and add units as volumes grow. Where your loads go beyond the rated towing capacity of the G-5-6X, look at the other versions the sources name in the series, the SIASUN G-8-15X (G-8-15X), the SIASUN G-20-30X (G-20-30X) and the SIASUN G-40X (G-40X). Their figures are confirmed against their own datasheets. Indoor tasks such as lifting racks and carts are better served elsewhere in our Mobile Robots range, and our wider Logistics Robots category covers other approaches to automated material flow.

What is the SIASUN G-5-6X used for?

1. Inter-building transport: moving heavy carriers between production halls, warehouses and assembly areas across an industrial park.
2. Yard and dock shuttling: collecting staged trailers at loading bays and delivering them to buffer zones or other docks.
3. Production supply: bringing raw materials and components from central stores to the lines that consume them.
4. Finished-goods removal: hauling completed output from production to dispatch or outbound storage.
5. Continuous shift logistics: keeping heavy transport running through nights and weekends without a dedicated tractor driver.
6. Fleet-based site logistics: operating as one of several coordinated tractors dispatched and optimised through the IMRS 2.0 platform.

Pricing and Availability

The SIASUN G-5-6X is sold on quotation, since every outdoor deployment depends on the site: route lengths, surfaces, the carriers in use and the integration with existing systems all shape the right configuration. Robots Europa reviews these points with you and confirms the unpublished specifications against the manufacturer's datasheet before you commit. Delivery, customs and support are arranged with the quotation. To begin, describe your site and your transport task in the quotation request available on this page.

Frequently Asked Questions

What towing capacity does the SIASUN G-5-6X have?

The G-5-6X has a rated towing capacity of 5000 / 6000 kg. For heavier loads, the G-8-15X, G-20-30X and G-40X are the other versions in the series.

How fast does the G-5-6X travel?

It travels at 2.2 m/s without a load and at 1.5 m/s at full load.

How does the G-5-6X navigate outdoors?

It uses multi-sensor fusion navigation, combining 3D LiDAR, GNSS satellite positioning, inertial navigation and vision sensors. Positioning is based on 3D SLAM, an IMU and RTK correction.

Can the G-5-6X couple to its carrier without an operator?

Yes. SIASUN's patented automatic hitching and unhitching technology lets the tractor dock with and separate from the carrier on its own. The hitch and carrier type are confirmed at quotation.

Is the G-5-6X designed for continuous outdoor operation?

SIASUN designs it for fast, flexible, scalable 7×24 all-weather running. Its safety design includes remote monitoring, sensor self-check, alarms and fail-safe protection.

Can several G-5-6X tractors work together?

Yes. SIASUN's mobile robot solutions run on the IMRS 2.0 platform, which provides multi-robot dispatching, route optimisation, data analytics and digital twins for fleet operation.

Where can I buy the SIASUN G-5-6X (G-5-6X) and what does it cost?

Robots Europa supplies the G-5-6X throughout the EU and the DACH region. The cost depends on your configuration and site, so we provide it as an individual quotation that you can request on this page.

Summary

The trailer waiting at the loading bay was never the difficult part; the difficulty was everything around it: the coupling, the drive across open ground and the release at the other end, each needing a person at the wheel. The SIASUN G-5-6X takes over that cycle. Fusion navigation built on LiDAR, GNSS, inertial and vision sensors keeps it located outdoors. Patented automatic hitching removes the manual step at both ends. Hydraulic power-assisted braking and rear-wheel drive handle a rated towing load of 5000 / 6000 kg, and IMRS 2.0 turns single tractors into a coordinated fleet. Robots Europa confirms the open specifications, arranges delivery and supports the robot in service. For heavy outdoor transport across your industrial park, this page is the starting point.
