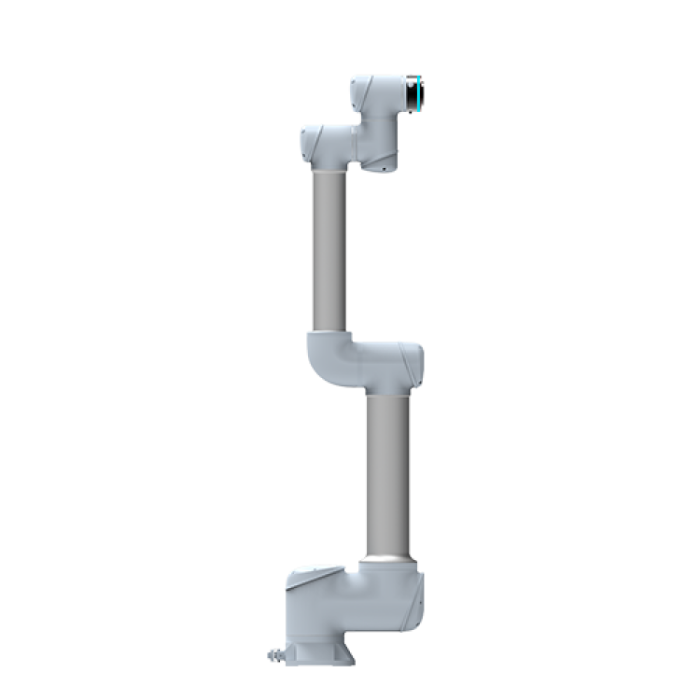

SIASUN GCR10-1300-W (GCR10-1300-W)

Most welding shops can name the job nobody wants: the long, repetitive seam that ties up a skilled welder for hours, while more demanding work waits. The SIASUN GCR10-1300-W is built for that gap. It is a six-axis collaborative welding robot that you teach by guiding the arm by hand rather than by writing code. Its welding process package is ready from the outset, and its reach and payload suit torches, wire feeders and the parts that sit between them. It does not replace the welder. It takes over the seams that a welder should not have to repeat a hundred times a day.

Robots Europa, based in Dublin, sells the SIASUN GCR10-1300-W and supplies it to customers across the European Union and the DACH region. Robots Europa prepares each quotation, coordinates delivery to your site and remains your point of contact for support once the robot is running. Integrators planning a welding cell and manufacturers adding automation to an existing line can discuss their application with our team before any commitment is made.

Background

SIASUN DUCO and its lineage

SIASUN DUCO is the sub-brand of SIASUN dedicated to intelligent robotics. DUCO has broken foreign technology monopolies in several fields, and all of its core components are developed in-house. For a buyer, that independence matters because one engineering organisation designs the joints, drives and control logic of the arm, and the welding-specific software is built on top of them. The GCR family is DUCO's line of collaborative robots, and the models carrying the -W suffix are its welding versions. The GCR10-1300-W sits in that welding line alongside the smaller SIASUN GCR3-618-W and SIASUN GCR5-910-W.

Graphical interaction, drag teaching and the welding package

The robot is built around two core functions: graphical interaction and drag teaching. With drag teaching, an operator moves the arm along the seam by hand and records the points, so a welder can program the robot from experience rather than from a programming manual. The graphical interface then turns those points into an editable welding job. A welding process package comes as standard. It is professional software that balances specialisation with ease of use, and it covers spot welding, corner welding, oscillation welding, reciprocating welding, cladding, and multi-layer and multi-pass welding, among other tasks. An optional external axis plugin package extends the robot to further welding applications and to custom workstation layouts.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the robot's weight, power consumption, dimensions, mounting options, controller details, operating temperature, joint ranges or noise level, nor what is supplied in the box; Robots Europa confirms these at quotation.

What can the GCR10-1300-W weld out of the box?

Many collaborative arms reach the welding shop as general-purpose machines. The integrator then has to add welding logic, weave patterns and multi-pass routines before the first seam is laid. The GCR10-1300-W reverses that order. Because the welding process package is standard, the robot already understands the main joint types and techniques a fabrication shop uses: spot welds for tacking and sheet assemblies, corner welds for frames and boxes, oscillation and reciprocating welding where the seam calls for a weave, cladding for surfacing work, and multi-layer, multi-pass sequences for thicker sections that cannot be filled in one run.

Repeatability of ±0.03mm means a taught path is retraced consistently from part to part, which is what produces uniform seams across a batch. That high precision ensures high-quality weld seam output, and vision integration supports a range of functions within the cell. Where a job outgrows the standard package, for example when the workpiece has to rotate or the torch has to cover a longer travel, the optional external axis plugin package lets the robot coordinate with additional axes and so supports workstation designs beyond a fixed table.

How does the GCR10-1300-W fit into an existing welding cell?

The question most production managers ask first is not about payload but about integration: will the robot talk to the welding machine already on the floor? The GCR10-1300-W has a wide range of communication interfaces that are compatible with mainstream brands and with welding machine brands, enabling plug-and-play connection. In practice this means the robot is designed to work with established power sources rather than tying you to one supplier's equipment.

Beyond the welding machine, comprehensive development interfaces make it easy to build different welding workstations, from a simple manual-load table to a cell with positioners and vision. With a reach of 1300mm and a 10kg payload, the arm has room to carry a torch package and cable dress over a usefully large working envelope. The 3.8m/s maximum TCP speed shortens repositioning moves between seams, although the welding speed itself is set by the process. The IP54/IP65 classification of the arm is relevant in a shop where spatter, dust and grinding debris are part of daily life, and Robots Europa can advise which protection level suits the configuration you order.

Who is the SIASUN GCR10-1300-W for?

The GCR10-1300-W suits small and medium-sized fabricators that weld in varied batches and cannot justify a fully guarded traditional cell for every product. Drag teaching keeps reprogramming in the hands of the welders who know the parts. It also suits system integrators who build welding workstations for their customers, because the development interfaces and the optional external axis package give them a base to design on. Manufacturers of frames, brackets, enclosures, machine parts and structural assemblies, where seams are repetitive but quality has to be consistent, are natural users.

Not every welding task needs the largest arm in the line. If your parts are small and the cell is compact, compare the SIASUN GCR5-910-W and the SIASUN GCR3-618-W with this model; Robots Europa can set the three side by side in a quotation. Buyers who want a complete arc welding cell rather than an arm can look at the SIASUN Arc welding robotic solution, and the wider range is gathered under Robot Arms.

What is the SIASUN GCR10-1300-W used for?

1. Fillet and corner seams: repetitive corner welds on frames, boxes and brackets, laid consistently across a batch.
2. Spot welding and tacking: fixing sheet assemblies before final welding, so the welder can concentrate on finishing.
3. Weave welding: oscillation and reciprocating patterns for wider gaps and seams that call for a weave.
4. Multi-pass joints: multi-layer, multi-pass sequences that fill thicker sections run by run.
5. Cladding and surfacing: building up surface layers on worn or protected components.
6. Custom welding workstations: cells with external axes, positioners or vision, built on the development interfaces and the optional plugin package.

Pricing and Availability

Robots Europa supplies the SIASUN GCR10-1300-W on quotation, so the offer reflects the configuration, software options and welding equipment your application needs. Delivery, customs and support are arranged with the quotation. To start the process, use the quotation request available on this page.

Frequently Asked Questions

What payload and reach does the GCR10-1300-W offer?

It carries a maximum payload of 10kg and has a reach of 1300mm, with six degrees of freedom.

Do I need programming skills to use it?

No dedicated programming background is required for typical jobs. The robot is taught by drag teaching, with the operator guiding the arm by hand, and jobs are edited through a graphical interface.

Which welding processes are covered as standard?

The standard welding process package covers spot welding, corner welding, oscillation welding, reciprocating welding, cladding, and multi-layer and multi-pass welding, among others.

Will it work with my existing welding machine?

The robot's communication interfaces are compatible with mainstream brands and welding machine brands, with plug-and-play connection. Robots Europa can check your specific power source when preparing the quotation.

Can it work with external axes such as positioners?

Yes, with the optional external axis plugin package, which extends the robot to further welding applications and custom workstation layouts.

How precise is the robot?

Repeatability is ±0.03mm, which supports consistent weld seams from part to part.

Where can I buy the SIASUN GCR10-1300-W and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on configuration and options and is set out in a quotation, which you can request on this page.

Summary

The SIASUN GCR10-1300-W addresses a familiar shop-floor problem: skilled welders spending their days on seams a machine could repeat. It combines a 10kg payload, 1300mm reach and ±0.03mm repeatability with drag teaching and a standard welding process package, so welders can teach it from their own experience. Broad communication interfaces, development interfaces and an optional external axis package let it fit into the cell you already run. Robots Europa supplies it across the EU and the DACH region and supports it after delivery. For a welding team ready to hand its repetitive seams to a collaborative arm, this page is the starting point.
