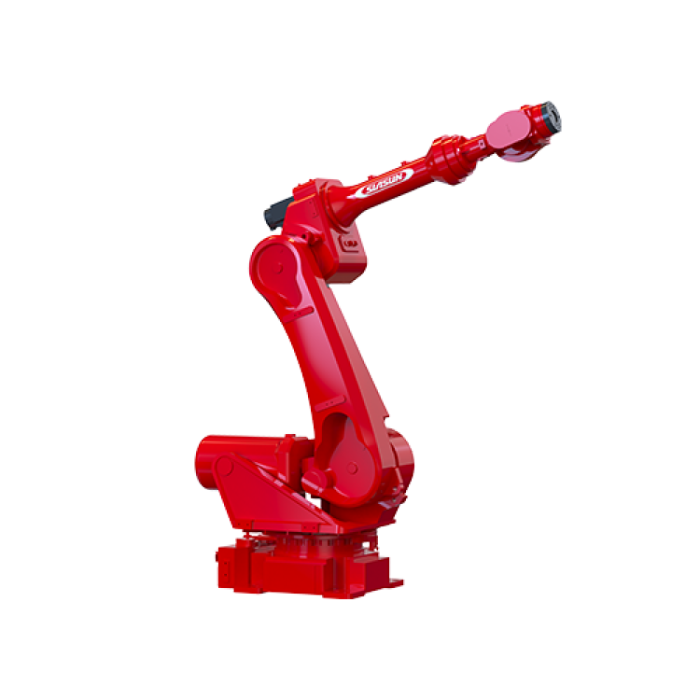

SIASUN SR210A-210/2.65 (SR210A-210/2.65)

On a welding line the heaviest load a robot carries is often the tool rather than the part. A spot welding gun and its cable package hang from the wrist on every cycle, working against both speed and accuracy. The SIASUN SR210A-210/2.65 is designed around that tension. SIASUN gives it a reinforced wrist and high-torque output so that speed and payload improve together, rather than one being traded for the other. It then adds its own control system and a library of process software. The result is a heavy-payload robot for welding cells and handling stations where a large tool or workpiece must be moved precisely, shift after shift.

Robots Europa, based in Dublin, supplies the SIASUN SR210A-210/2.65 to manufacturers and system integrators across the European Union and the DACH region. Robots Europa prepares quotations for the robot on its own or as part of a wider welding or handling package. It also arranges delivery to your site and provides technical support once the cell is running. Robots Europa is your single point of contact from the first enquiry onwards.

Background

SIASUN and its lineage

SIASUN is one of the earliest companies in China to research and industrialise robot technology. That history shows in a portfolio that runs from compact arms for light assembly to large machines for body shops and heavy fabrication. The SR210A-210/2.65 belongs to the upper end of that range, within SIASUN's Large Payload family. That family also includes models such as the SR270A-270/2.70 and the SR360A-280/3.20. Each model in the family pairs a payload class with a particular reach, so that a production engineer can match the arm to the cell rather than the other way round.

For European buyers, the lineage matters in a practical sense. A manufacturer that has industrialised robot technology over a long period has had time to refine its mechanical designs and its software. It has also built up the process knowledge needed to apply robots in real factories. SIASUN's decision to develop its own control system, rather than rely on a third-party controller, is part of that approach.

Positioning: heavy payload without giving up pace

Heavy-payload robots are often judged on how much they lift. In production, however, cycle time and positional accuracy count just as much. SIASUN positions the SR210A-210/2.65 as a robot that combines flexibility with heavy-load capability. The reinforced wrist and high-torque output are the core of that claim, because they allow speed and payload to rise together.

Around that mechanical base sit three further elements. Critical components use a double-sealed structure for durability, and the wrist carries an IP67 protection rating. The self-developed intelligent control system works with welding guns and controllers from multiple brands. Integrated multi-industry process packages help users handle a wide variety of manufacturing tasks without building every routine from scratch.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the robot weight, axis speeds, axis motion ranges, power supply, controller model, operating temperature, package contents or wrist load moment; Robots Europa confirms these at quotation.

What makes the SIASUN SR210A-210/2.65 suited to spot welding?

The clearest sign is SIASUN's own allocation. The SR210A-210/2.65 is listed as a robot type in the manufacturer's spot welding solution, supplied together with a spot welding gun and controller. This is not a general-purpose arm later adapted to welding; it is one of the robots SIASUN puts forward for that task.

The figures support that allocation. Spot welding guns are heavy, and a payload of 210 kg (463 lbs) leaves room for the gun, its cabling and any dress pack that travels with it. A reach of 2658mm lets a single robot cover a wide area of a car body or a large fabricated assembly. A repeatability of ±0.06mm helps the robot return to each weld point consistently, cycle after cycle. That consistency matters when weld quality depends on where the electrodes close.

Compatibility is the other half of the argument. Many plants have already standardised on a particular brand of welding gun or weld controller. The self-developed control system works with welding guns and controllers from multiple brands, so the robot can be introduced into an existing welding set-up rather than forcing a change of process equipment. Robots Europa reviews the specific gun and controller you intend to use as part of the quotation.

How does the SR210A-210/2.65 cope with harsh production environments?

Welding cells and heavy handling areas are hard on equipment. They bring spatter, dust, coolant mist, cleaning routines and continuous operation. The SR210A-210/2.65 answers this with an IP67 rating at the wrist, which is the part of the arm closest to the process. It also uses a double-sealed structure on its critical components for exceptional durability.

Regulatory fit is a separate kind of robustness. The SR210A-210/2.65 has obtained CE certification under the EU Machinery Directive and the Electromagnetic Compatibility Directive. For buyers in the EU and the DACH region, this means the robot itself arrives with the conformity groundwork a European installation expects. The complete robot cell, including guarding, tooling and safety functions, still requires its own conformity assessment by the integrator or operator. Robots Europa can discuss the documentation available for that process.

Who is the SIASUN SR210A-210/2.65 for?

The first group of buyers is automotive body shops and their tier suppliers. For them, spot welding of large panels and sub-assemblies is daily work, and the robot's place in SIASUN's spot welding solution speaks directly to that need. The second group is heavy fabrication plants that weld or handle large steel components. These plants need a combination of payload, reach and sealing that lighter arms cannot provide.

System integrators form a third group. Integrators building welding or handling lines for European customers can use the robot's multi-brand compatibility and its process packages to shorten engineering time. Plants already running SIASUN robots elsewhere make up a fourth group, as they benefit from a consistent control system across their fleet.

SIASUN also names related versions, including the SR210A-210/3.05-DW and the SIASUN SR210-120/3.05. Where a cell layout calls for a different balance of reach and payload, these models are worth comparing. Robots Europa can set them beside the SR210A-210/2.65 when you request a quotation. For a wider view of the range, the Industrial Robots category lists SIASUN's other models.

What is the SIASUN SR210A-210/2.65 used for?

1. Spot welding: carrying a spot welding gun across car bodies and large sheet-metal assemblies.
2. Heavy material handling: moving large castings, frames or panels between stations in a production line.
3. Machine tending: loading and unloading bulky parts at presses, machining centres or fixtures.
4. Palletising and depalletising: stacking heavy goods or components at the end of a line.
5. Assembly of large components: positioning heavy sub-assemblies for joining, fastening or fitting.
6. Harsh-environment processing: working in dusty or spatter-prone cells where a sealed wrist is an advantage.

Pricing and Availability

Robots Europa supplies the SIASUN SR210A-210/2.65 on a quotation basis, so each offer reflects the configuration, tooling and integration scope of your project. A written quotation gives you a clear basis for planning before you commit. Delivery, customs and support are arranged together with the quotation. To begin, tell us about your application, the welding equipment or grippers you plan to use and your installation site, using the quotation request available on this page.

Frequently Asked Questions

What payload does the SIASUN SR210A-210/2.65 handle?

The SR210A-210/2.65 has a payload of 210 kg (463 lbs). This places it in SIASUN's large-payload class, suited to heavy welding guns and bulky workpieces.

What are its reach and repeatability?

The robot has a reach of 2658mm and a repeatability of ±0.06mm. Together these suit work on large parts that still demands consistent positioning.

Is the SR210A-210/2.65 CE certified?

Yes. It has obtained CE certification under the EU Machinery Directive (MD) and the Electromagnetic Compatibility Directive (EMC).

Can it work with the welding gun we already use?

Its self-developed control system is compatible with welding guns and controllers from multiple brands. Robots Europa checks your specific gun and controller as part of the quotation.

How well protected is the wrist?

The wrist is rated IP67, and critical components use a double-sealed structure for durability in demanding environments.

Does the robot come with process software?

The SR210A-210/2.65 works with SIASUN's integrated multi-industry process packages. These help users handle a wide range of manufacturing tasks without programming every routine from scratch.

Where can I buy the SIASUN SR210A-210/2.65 and what does it cost?

You can buy the SR210A-210/2.65 from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on configuration and scope, so request a quotation on this page for an offer tailored to your project.

Summary

The SIASUN SR210A-210/2.65 tackles the trade-off that defines heavy-payload robots: carrying a large tool or part without losing pace or precision. A reinforced, high-torque wrist, a payload of 210 kg (463 lbs), a reach of 2658mm and a repeatability of ±0.06mm form its mechanical case. The IP67 wrist and double-sealed components make it ready for harsh cells. Multi-brand welding compatibility, process packages and CE certification under MD and EMC make it ready for European plants. For a welding or heavy handling cell supplied, delivered and supported by Robots Europa, this page is the starting point.
