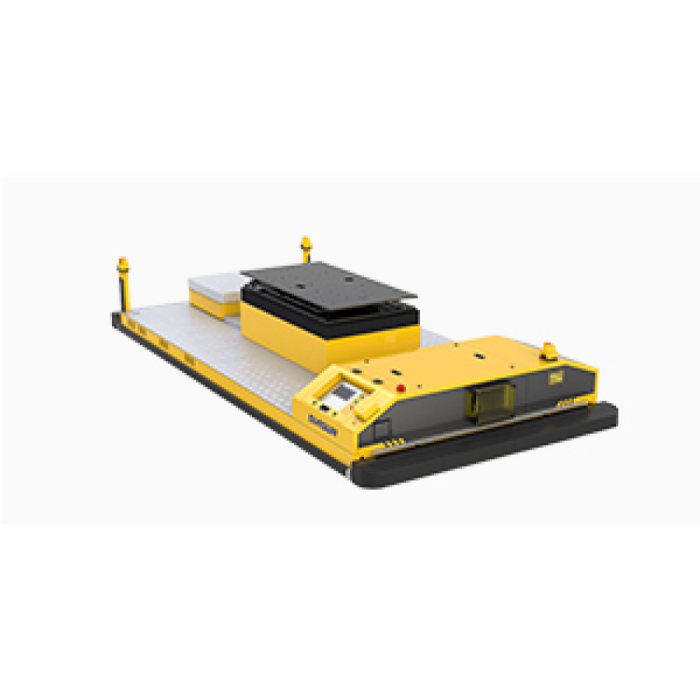

SIASUN Single-Lift Automotive Assembly Mobile Robot (Single-Lift Automotive Assembly Mobile Robot)

In final assembly, the moment of truth lasts only seconds: a painted body hangs on the overhead line, and a suspension module or a power battery pack must rise beneath it and meet its mounting points on the first attempt. Fixed lifting tables and track-bound carts have handled that moment for decades, but they tie a workshop to one layout and one vehicle. The SIASUN Single-Lift Automotive Assembly Mobile Robot brings the lift to the hanger instead, travelling without tracks, docking with the line and carrying loads of up to 1000 kg up to the body.

Robots Europa, based in Dublin, supplies this robot to automotive manufacturers and assembly integrators across the European Union and the DACH region. Robots Europa prepares each quotation, coordinates delivery to your plant and remains your point of contact for technical questions and after-sales support once the robot is working on your line.

Background

SIASUN and its engineering lineage

SIASUN Robot & Automation is a Chinese robotics manufacturer headquartered in Shenyang, with roots in the Shenyang Institute of Automation of the Chinese Academy of Sciences. The company builds industrial robots, mobile robots and complete automation systems, and its mobile robot portfolio extends from assembly-line vehicles such as this one to heavy-duty transport platforms. For European buyers, this breadth means the single-lift robot belongs to a wider family of SIASUN mobile robots rather than standing alone as a one-off design.

A family built around the number of lift points

SIASUN offers its automotive assembly mobile robots in several configurations: the Single-Lift, Dual-Lift, Triple-Lift and Four-Lift versions. The version described on this page carries one lifting unit, a scissor structure driven by a servo motor. Its focus is clear: front suspension, rear suspension and power battery pack marriage operations, where a single, well-controlled lifting axis and a floating platform deliver the component to the body. The figures on this page apply to the Single-Lift version only; the other versions have their own specifications.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the overall dimensions, the weight, the battery capacity, the operating time, the travel speed, the safety certifications, the positioning accuracy or the package contents; Robots Europa confirms these at quotation.

How does a single-lift robot cope with off-centre loads?

Suspension modules and battery packs are rarely balanced loads. A front suspension assembly carries its weight where the subframe, struts and steering components sit, not where a designer would place a neat centre of mass, and a battery pack may be presented on a fixture that shifts its centre away from the lifting axis. A lift that cannot cope with eccentric loads will tilt, bind or demand time-consuming fixture redesign.

SIASUN designed this robot with high-load lifting capability and excellent tolerance to eccentric loads. The scissor structure spreads the load across its linkage, while servo motor lifting gives the controller precise command over height and speed throughout the 1000 mm stroke. The result is a single lifting unit that can raise up to 1000 kg of battery or suspension hardware to the body without the operator needing to centre every load perfectly beforehand. For a workshop that assembles different vehicle models, this tolerance reduces the number of special fixtures needed for each variant.

Why does the lift platform float during marriage?

Even with high-precision navigation, a vehicle body suspended from a moving hanger is never exactly where the drawing says it should be. Hangers swing, bodies settle and conveyors carry their own tolerances. If the lifting platform were rigidly fixed to the chassis of the robot, every small misalignment would have to be absorbed by the bolts and locating pins of the component itself.

This robot answers the problem in two stages. First, its navigation brings the vehicle to the station with an accuracy of ±10 mm and ±1°, and synchronised motion control lets it dock accurately with mainline hangers and station fixtures. Second, the lift platform floats by X ±125 mm, Y ±50 mm and ±2° in angle, so the final alignment of the component to the body can take place at the platform rather than through repositioning the whole vehicle. Together, these two stages support a consistent takt time and process accuracy, the two measures by which a marriage station is judged.

Who is the SIASUN Single-Lift Automotive Assembly Mobile Robot for?

The first group is vehicle manufacturers running final assembly lines in which suspension and battery marriage still rely on fixed lifting tables or manually guided carts. For them, the robot offers a trackless alternative that can be routed around the existing building without cutting new floor channels.

The second group is plants preparing for electric vehicle production. Power battery pack marriage is named explicitly among the robot's intended operations, and its trackless, flexible movement suits workshops that must run combustion and electric models on the same line or switch between them over long production cycles.

The third group is automation integrators and line builders who design marriage stations for automotive clients across Europe. The robot's compatibility with multiple vehicle models and its docking with mainline hangers and station fixtures make it a component around which a station can be planned.

Where a component or fixture needs more than one lifting point, SIASUN's Dual-Lift, Triple-Lift and Four-Lift versions are the relevant alternatives; Robots Europa can compare them with your application. Buyers whose task is moving heavy loads through a plant rather than assembling vehicles will find SIASUN's heavy-duty platforms, such as the SIASUN 3T Heavy-Duty Mobile Robot, within the wider range of factory robots.

What is the SIASUN Single-Lift Automotive Assembly Mobile Robot used for?

1. Front suspension marriage: raising the front suspension module to the body at the marriage station.
2. Rear suspension marriage: presenting the rear axle or suspension assembly to its mounting points beneath the hanger.
3. Power battery pack marriage: lifting battery packs of up to 1000 kg into position beneath electric vehicle bodies.
4. Docking with mainline hangers: synchronising with overhead conveyors so that the component meets a moving body consistently.
5. Mixed-model final assembly: adapting to several vehicle models on one line without track changes.
6. Long-cycle production: supporting stable, repeatable transport-and-assembly work over extended production runs with auto-charging and monitoring.

Pricing and Availability

Robots Europa prices each SIASUN automotive assembly robot on a quotation basis, because the right configuration depends on your vehicle models, station layout and number of lift points. Delivery, customs and support are arranged with the quotation. Tell us about your marriage station, your components and your production plan, and Robots Europa will return a tailored quotation. To start, use the quotation request available on this page.

Frequently Asked Questions

How much can the SIASUN Single-Lift Automotive Assembly Mobile Robot lift?

It has a load capacity of 1000 kg, intended for battery and suspension assembly. Its lifting stroke is 1000 mm.

Does the robot need tracks or floor guides?

No. It moves tracklessly, which lets it adapt to multiple vehicle models and changing layouts without fixed floor infrastructure.

How accurately does it navigate?

Its navigation accuracy is ±10 mm / ±1°. Final alignment with the vehicle body is supported by a lift platform float of X ±125 mm, Y ±50 mm and ±2° in angle.

What drive and lifting systems does it use?

The robot uses a single-steering-wheel drive. Lifting is performed by a single-lift scissor structure driven by a servo motor.

Is it suitable for electric vehicle battery installation?

Yes. Power battery pack marriage is one of its intended operations, alongside front and rear suspension marriage.

How does the robot recharge?

It features auto-charging and monitoring as part of its multiple protections, so it can return to charge without manual intervention in the workflow.

Where can I buy the SIASUN Single-Lift Automotive Assembly Mobile Robot and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region from Dublin. The cost depends on your configuration and is given in a tailored quotation.

Summary

The few seconds in which a body and its chassis components meet decide whether a final assembly line keeps its rhythm. The SIASUN Single-Lift Automotive Assembly Mobile Robot is built for exactly that moment: it carries up to 1000 kg, raises it through a 1000 mm stroke on a servo-driven scissor lift, docks with hangers and fixtures through high-precision navigation and synchronised motion, and leaves the final millimetres to a floating platform. Its trackless movement keeps the marriage station adaptable as vehicle models change, and its tolerance to eccentric loads keeps fixture work manageable. Robots Europa supplies, delivers and supports it across Europe, and for anyone planning a suspension or battery marriage station, this page is the starting point.
