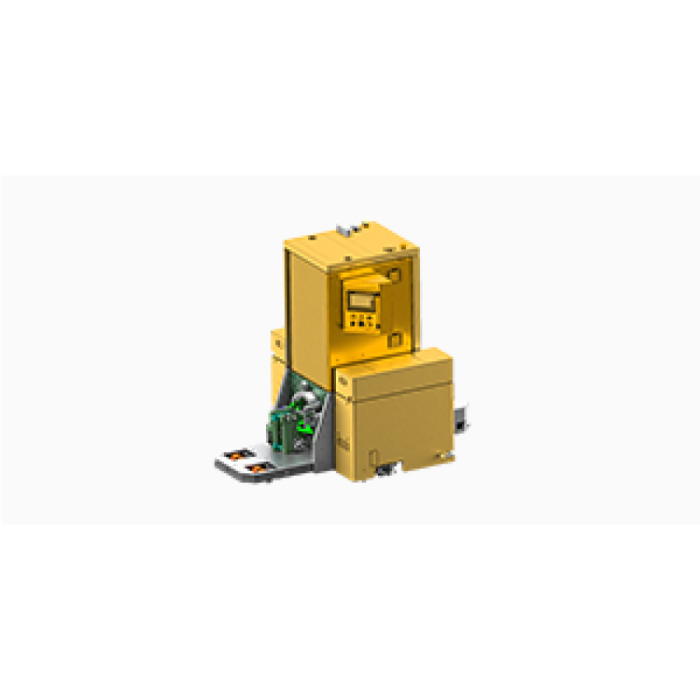

SIASUN Transmission Assisted Assembly Mobile Robot (Transmission Assisted Assembly Mobile Robot)

On a transmission line the hardest part of the job is rarely the bolting. It is bringing a heavy, awkward gearbox to exactly the right height at exactly the right spot, cycle after cycle, without an operator steering a hoist through a crowded bay. The SIASUN Transmission Assisted Assembly Mobile Robot starts from that problem. It is a compact, tape-guided platform that carries the unit to the station and raises it on a screw-driven lift, so that the people on the line can concentrate on the fit rather than on the carrying.

Robots Europa, based in Dublin, supplies this SIASUN robot to manufacturers and integrators across the European Union and the DACH region. Each quotation from Robots Europa is prepared against your line layout, your preferred navigation method and any add-ons you intend to fit. Robots Europa remains your point of contact for delivery, commissioning questions and after-sales support.

Background

SIASUN and its automation heritage

SIASUN is a Chinese manufacturer of industrial robots and automation systems. The company emerged from research at the Shenyang Institute of Automation of the Chinese Academy of Sciences. Its portfolio covers articulated arms, specialised handling equipment and a broad family of mobile robots. That mobile family runs from process-specific platforms such as this one to heavy-duty carriers designed for very large loads. For a plant planning several layers of internal logistics, this means one supplier and one engineering culture can cover both line-side assembly support and bulk material movement.

A lift built around the gearbox

This robot is not a general transport vehicle with an assembly task added afterwards. SIASUN developed it specifically for transmission assembly processes, and its design follows from that purpose. A screw-driven lifting structure provides the vertical travel, chosen for stable and reliable operation while a heavy component is being presented to the vehicle or sub-assembly. The body is compact and turns with agility, so the robot remains efficient in assembly workshops where floor space is limited. SIASUN also designs the platform to accept diverse add-ons and extensions. It works under intelligent dispatching, which the manufacturer links directly to assembly quality.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, weight, travel speed, battery type and capacity, runtime, charging method, ingress protection rating, power supply voltage, package contents or safety sensors; all of these are confirmed with you at quotation.

How does a dedicated transmission-assembly robot differ from a general-purpose AGV?

A general-purpose automated guided vehicle is designed to move loads from one point to another. What happens at the destination is left to other equipment. On a transmission line, that hand-off is where the time and the risk lie. The gearbox must be raised to the mating height, held steady and kept in position while the operator aligns it. Because the SIASUN robot is built around this moment, the lift is part of the vehicle itself. The 865 mm lifting stroke and the screw-driven structure are there to present the component, not merely to load and unload it.

The two accuracy figures are best read together. The positioning accuracy of ±5 mm describes how closely the robot arrives at its stopping point. The navigation accuracy of ±10 mm describes how closely it follows its guided route between stations. A tight stopping tolerance is what an assembly operation requires, because the component must arrive where the fixture or the vehicle expects it. The braking system pairs a servo motor with a mechanical brake, which suits a platform that must hold its position under a heavy load while work is carried out on it.

The compact body and agile turning address a further difference. General transport vehicles are often sized for wide aisles. Assembly workshops, by contrast, are full of stations, racks and people, and a robot that cannot manoeuvre between them adds congestion rather than removing it.

Which navigation set-up suits my workshop?

The robot navigates by colour tape combined with QR code tape, with magnetic strip available as an option. Tape-based guidance is a well-established approach in automotive plants. Routes are laid directly on the floor, can be read and checked by maintenance staff at a glance, and can be re-laid when a line is rebalanced. The QR codes act as fixed reference points along the route, giving the robot defined locations at which it can confirm where it is. Magnetic strip is commonly chosen where floors carry heavy traffic or are prone to dirt that could obscure visible tape. We recommend discussing your floor conditions and changeover plans with Robots Europa before the quotation, so that the navigation option matches the environment.

Who is the SIASUN Transmission Assisted Assembly Mobile Robot for?

The clearest fit is the automotive manufacturer running a transmission marriage or powertrain assembly operation, where gearboxes must be brought to the line repeatedly and presented at working height. Tier 1 suppliers that build transmissions or drivetrain sub-assemblies for vehicle makers face the same task on a smaller footprint. For them, the compact body and agile turning are particularly relevant.

System integrators designing a new line or modernising an existing one will value the support for add-ons and extensions, which allows the platform to be adapted to a specific fixture or process. Production and ergonomics managers looking to reduce manual handling at heavy-component stations are a further audience, because the robot takes over both the carrying and the lifting.

Where the load is a large structure or heavy material rather than a transmission, a dedicated assembly platform is not the right tool. Such buyers are better served by SIASUN's heavy-duty carriers, which are listed in our Mobile Robots category. Plants assessing automation more broadly can browse the wider Factory Robots range.

What is the SIASUN Transmission Assisted Assembly Mobile Robot used for?

1. Transmission marriage: presenting the gearbox at the point where it is joined to the engine or vehicle body.
2. Height-matched delivery: raising the component through its lifting stroke to meet the working height of the station.
3. Sub-assembly to main line transfer: carrying finished transmission units from a preparation area to the assembly line along a taped route.
4. Reducing manual handling: replacing hoists and hand-pushed trolleys at stations where heavy components are lifted repeatedly.
5. Operations in confined workshops: working between closely spaced stations, where its compact body and agile turning are an advantage.
6. Dispatched multi-station service: serving several assembly points in sequence under intelligent dispatching.

Pricing and Availability

The SIASUN Transmission Assisted Assembly Mobile Robot is supplied on a quotation basis. Its configuration depends on your navigation method, any add-ons and the process it is to serve. Send Robots Europa a short description of your line, the components to be handled and your preferred guidance option, and we will prepare a quotation for your project. Delivery, customs and support are arranged together with that quotation. To begin, please use the quotation request available on this page.

Frequently Asked Questions

What payload can the robot carry?

The SIASUN Transmission Assisted Assembly Mobile Robot has a payload capacity of 700 kg.

How high does it lift the transmission?

The robot offers a lifting stroke of 865 mm, provided by a screw-driven lifting structure designed for stable operation during assembly.

Which navigation methods does it support?

It navigates by colour tape combined with QR code tape, and magnetic strip is available as an option.

How accurately does it stop at a station?

Positioning accuracy is ±5 mm and navigation accuracy along the route is ±10 mm.

How does the robot brake?

Braking combines a servo motor with a mechanical brake.

Can the robot be adapted to our process?

Yes. SIASUN designs the platform to support diverse add-ons and extensions, and Robots Europa discusses the right configuration with you during the quotation process.

Where can I buy the SIASUN Transmission Assisted Assembly Mobile Robot and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on configuration and project scope, so please request a quotation through this page.

Summary

The weak point of many transmission lines is not the assembly itself but the heavy, repetitive work of bringing the gearbox into position. The SIASUN Transmission Assisted Assembly Mobile Robot answers that with a single, purpose-built machine. It offers a 700 kg payload, an 865 mm screw-driven lift, tape and QR code guidance, ±5 mm positioning accuracy and a servo-plus-mechanical braking system, all in a compact body made for crowded workshops. Robots Europa supplies and supports it across the EU and the DACH region. For anyone planning to take the carrying and lifting out of transmission assembly, this page is the starting point.
