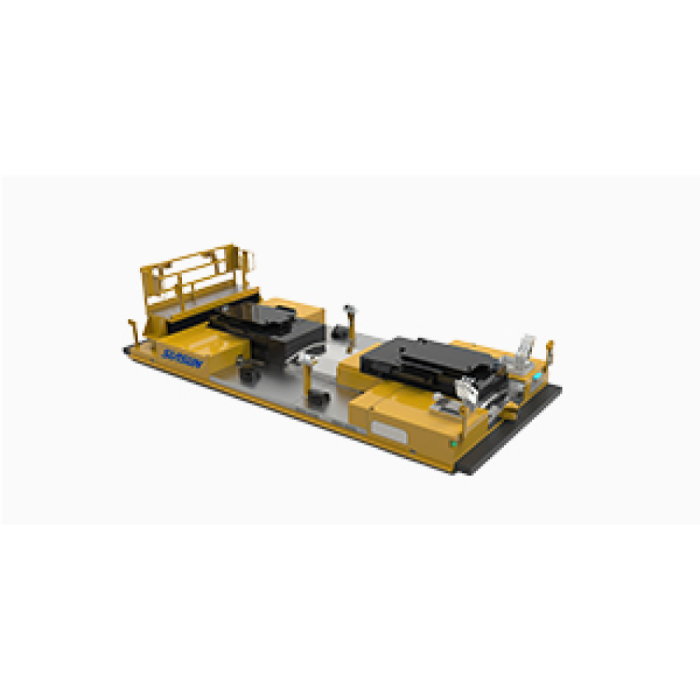

SIASUN Triple-Lift Automotive Assembly Mobile Robot (Triple-Lift Automotive Assembly Mobile Robot)

Front suspension work has always asked two things at once: the vehicle body has to sit exactly where the tooling expects it, and the people fitting the parts have to stand where they can actually reach. On a conventional line, those needs are solved by separate pieces of equipment, with fixed lifts for the body and platforms or pits for the fitters. The SIASUN Triple-Lift Automotive Assembly Mobile Robot brings both onto one mobile base. It raises a heavy load to a high working station, holds it in a position the tooling can dock with, and carries a manned step platform so that operators can work at height beside it, moving the assembly station to the job rather than building the job around a fixed station.

Robots Europa, based in Dublin, sells and supplies this robot to automotive manufacturers and integrators across the European Union and the DACH region. Robots Europa prepares each quotation, coordinates delivery to the plant and remains the point of contact for support once the robot is in service.

Background

SIASUN and its place in industrial automation

SIASUN is a Chinese robotics and automation manufacturer whose portfolio spans industrial robots, mobile robots and complete factory automation systems. Its mobile robot range covers both heavy-duty transport platforms and application-specific vehicles built for particular production steps. The automotive assembly series belongs to the second group: rather than simply moving goods from one point to another, these robots form part of the assembly process itself, carrying vehicle bodies or modules through the stations where parts are joined.

An enhanced model built on the dual-lift platform

SIASUN offers its automotive assembly mobile robots in four versions: Single-Lift, Dual-Lift, Triple-Lift and Four-Lift. The Triple-Lift is an enhanced model based on the dual-lift platform, designed for high-position assembly tasks such as front suspension assembly. Its defining addition is a manned step platform with a lifting payload of up to 500 kg, which meets operators' needs for working at height while enabling high-precision docking between the vehicle body and the tooling. The design is flexible and scalable, integrating manual work and equipment handling on one vehicle.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the weight, dimensions, battery type, charging method, travel speed, operating time, navigation method, safety certifications, IP rating or box contents of this robot; these are confirmed at quotation.

What does the Triple-Lift version add to the dual-lift platform?

The Triple-Lift starts from the dual-lift platform and is extended for work that happens high above the floor. Front suspension assembly is the example SIASUN gives, and it explains the design well: the parts are fitted from below and from the side of a raised body, so the body must be lifted to a high station and held steady while people and tools work around it.

Two features carry that brief. The first is the lifting stroke of 1000 mm, delivered through a scissor structure, which gives the robot the reach to support high-station front suspension assembly. The second is the manned step platform. With a lifting payload of up to 500 kg, it raises operators together with the work, so fitters reach the joint at a comfortable height instead of relying on separate access equipment. Placing both on one vehicle is what integrating manual work and equipment handling means in practice.

The load capacity of 3200 kg sets the weight the robot is rated to carry, and the dual-steering-wheel drive moves it between stations. Because the lifting mechanism offers adjustable spacing of 2450–3170 mm, the lift points can be set to suit the body or module being carried.

How does the robot achieve precise docking with tooling?

Precision on an assembly robot is a matter of two stages: getting to the station, and then meeting the tooling once there. For the first stage, the robot works to a navigation accuracy of ±10 mm / ±1°, which defines how closely it arrives at its target position and heading.

The second stage is handled by the lift platform float of X ±125 mm, Y ±50 mm and an angle of ±2°. Float allows the carried body to settle against locating features on the tooling without forcing the whole vehicle to move, absorbing the small differences that remain between arrival position and docking position. The combination of controlled arrival and compliant final positioning is what lets the robot dock the vehicle body with the tooling with high precision.

Accurate docking feeds directly into production rhythm: when every body meets its tooling in the same way, each cycle takes the same time, and the station keeps a consistent takt time. For a line planner, that repeatability is as valuable as the precision itself.

Who is the SIASUN Triple-Lift Automotive Assembly Mobile Robot for?

The robot is aimed at automotive manufacturing, and above all at plants and integrators planning stations where high-position assembly, such as front suspension work, has to be combined with manual fitting. Typical buyers include vehicle manufacturers modernising a final assembly hall, automation integrators designing a flexible assembly cell for a vehicle programme, and production engineering teams who want to replace fixed lifting stations with mobile equipment that can be re-routed as the line changes.

It is particularly suited to teams that value ergonomics at the station. Where fitters would otherwise need separate platforms to reach a raised body, the manned step platform keeps people and the workpiece together at the right height.

Not every station needs this configuration. SIASUN builds the same assembly series as Single-Lift, Dual-Lift and Four-Lift versions, and the right choice depends on the task, the height of the working station and how the body must be supported. Robots Europa can help compare the versions against a specific station layout during quotation. Where the requirement is heavy material transport rather than assembly, the wider range of SIASUN Mobile Robots includes heavy-duty platforms, and further automation equipment is gathered under Factory Robots.

What is the SIASUN Triple-Lift Automotive Assembly Mobile Robot used for?

1. Front suspension assembly: raising the vehicle body to a high station so suspension components can be fitted from below.
2. Body-to-tooling docking: presenting the body to fixtures and tooling with controlled arrival and a floating lift platform.
3. Operator work at height: lifting fitters on the manned step platform so that they work beside the raised body.
4. Combined manual and equipment handling: bringing the workpiece, the lift and the operators' working position together on one vehicle.
5. Takt-stable assembly stations: keeping each cycle consistent through repeatable, accurate docking.
6. Adaptable body support: setting the lift spacing within its adjustable range to match the body or module carried.

Pricing and Availability

The SIASUN Triple-Lift Automotive Assembly Mobile Robot is sold on a quotation basis, as the configuration, station layout and integration requirements differ from one plant to the next. Robots Europa prepares each quotation individually for the specific station and line. Delivery, customs and support are arranged together with the quotation. To begin, please send your application details to Robots Europa using the quotation request available on this page.

Frequently Asked Questions

What load can the Triple-Lift robot carry?

The robot has a load capacity of 3200 kg. The manned step platform carries its own lifting payload of up to 500 kg.

How high does the lift travel?

The lifting stroke is 1000 mm, delivered through a scissor structure. This is what allows the robot to support high-station front suspension assembly.

What is the manned step platform for?

It raises operators so that they can work at height beside the lifted vehicle body. It meets the need for working at height while the robot docks the body with the tooling.

How accurate is the robot's positioning?

Navigation accuracy is ±10 mm / ±1°. The lift platform float of X ±125 mm, Y ±50 mm and an angle of ±2° then allows the body to settle precisely against the tooling.

What drive system does the robot use?

The robot uses a dual-steering-wheel drive to move between stations. Its lift spacing can be adjusted between 2450 and 3170 mm to suit the body carried.

How does the Triple-Lift differ from the other versions?

It is an enhanced model based on the dual-lift platform, designed for high-position tasks and equipped with a manned step platform. Single-Lift, Dual-Lift and Four-Lift versions are also available, and Robots Europa can advise which suits a given station.

Where can I buy the SIASUN Triple-Lift Automotive Assembly Mobile Robot and what does it cost?

Robots Europa supplies the robot across the EU and the DACH region. The cost depends on configuration and integration, so it is provided in an individual quotation.

Summary

Front suspension assembly has long split the task between a fixed lift for the body and separate access for the people fitting it. The SIASUN Triple-Lift resolves that split on one mobile vehicle: a 1000 mm scissor lift for high-station work, a 3200 kg load capacity, controlled navigation and a floating lift platform for precise docking, and a manned step platform that keeps operators at the height of the job. Built as an enhanced model on the dual-lift platform, it combines manual work and equipment handling while holding a consistent takt time. For manufacturers and integrators in the EU and the DACH region who want to bring that station to their own line with Robots Europa, this page is the starting point.
