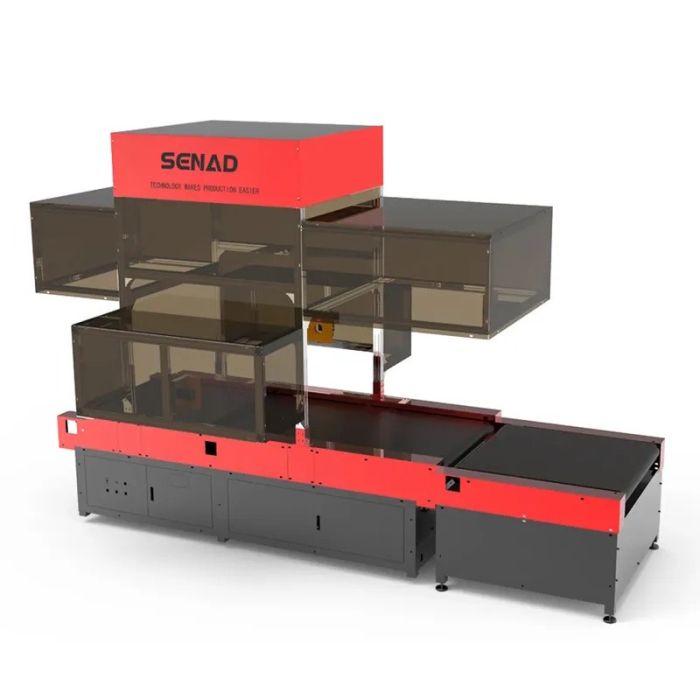

Senad Six-Side Barcode Scan DWS System

Every parcel that comes off a lorry carries its label wherever the packer happened to put it: on the top, down one side, at the leading end. On a busy inbound dock that small randomness adds up to a real cost. Someone has to turn the box, find the code, hold it under a scanner and then key in what the scale and the tape measure say, parcel after parcel, shift after shift. The Senad Six-Side Barcode Scan DWS System is designed to take that step out of the operator's hands, identifying, weighing and measuring each item while it is still travelling along the conveyor.

Robots Europa, based in Dublin, supplies this system to parcel carriers, e-commerce fulfilment centres, third-party logistics providers and systems integrators across the European Union and the DACH region. Robots Europa prepares each quotation around the customer's own line layout and remains the point of contact for delivery and support once the equipment is in service.

Background

Senad, the manufacturer

Senad describes itself as a high-tech manufacturer with its own research and design capacity. Its portfolio covers several stages of the warehouse flow, from dimensioning, weighing and scanning equipment to 3D vision workstations, palletising robots and automated guided vehicles, all of which can be explored in the Senad range. The Six-Side Barcode Scan DWS System sits at the point where goods first become data: the moment a physical parcel is turned into a record with an identity, a weight and a volume that downstream systems can trust.

Three sections, one pass

The system is built from three parts. A speed-up conveyor section brings parcels in and creates the conditions for measurement. The central code scan, dimension and weight conveyor scale section is where the work happens: it combines dynamic weighing, automatic code scanning and dimension and volume measurement in a single run, so that weight, volume and barcode are all captured online and in real time rather than at separate stations. Finally, an abnormal handling section is provided for parcels that require attention. The measurement section is equipped with six cameras, installed on the top and on five sides, which is what gives the system its name and its improved code reading rate.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, the weight, the weighing accuracy or weighing range, the measuring range, the power supply, the supported barcode symbologies, the operating temperature, the conveyor belt speed or the camera resolution; these are all confirmed at quotation.

How does six-side scanning differ from a single overhead reader?

A single scanner mounted above a belt reads only what faces it. If the label is on the top, the parcel passes cleanly; if it is on a side or an end, the parcel either needs to be re-oriented by hand before it enters the line or it falls out as a no-read and has to be dealt with manually. In a high-volume operation, that second path quickly becomes a queue of its own.

Senad's approach is to look at the parcel from several directions at once. With cameras on the top and on five sides, the system does not depend on how the parcel was loaded onto the belt, and the manufacturer states that this arrangement improves the code reading rate. Because the scan happens in the same section as the weighing and the dimension measurement, the identity of the parcel and its physical attributes are captured together, which removes the risk of a weight being attached to the wrong barcode at a separate station.

The throughput of more than 2400 pieces / hour follows from this design. Weight, volume and barcode are measured dynamically, while the parcel moves, so the line does not have to stop and start for each item. For operators, the practical difference is that the DWS step stops being a bottleneck and becomes part of the conveyor itself.

Can the system be connected to unloading and sortation equipment?

Yes, and this is central to how the system is meant to be used. At the front, a telescopic conveyor can be fitted that extends into a truck container, so that parcels can be unloaded directly onto the line rather than being carried by hand to an induction point. At the end, Senad's parcel sorting modular machines can be installed, so that each item leaves the measurement section with its data already attached and goes straight to the correct destination.

The modular design means that the system does not have to be bought as a complete greenfield installation. Senad positions it as equipment that can be integrated into an existing assembly line, adapted to the multifaceted needs of different sites. On the data side, the rich software interface and customisable software allow the measurements to be passed to the warehouse management system, transport management system or carrier platform the site already runs. The precise interfaces required for a given project are a matter to clarify when requesting a quotation.

Who is the Senad Six-Side Barcode Scan DWS System for?

The clearest fit is an e-commerce or parcel operation where volume is high and labels arrive in every orientation: fulfilment centres dispatching to many carriers, courier hubs receiving mixed trailer loads, and cross-border consolidation points that need accurate weights and volumes for every consignment. For these sites, a single pass that reads, weighs and measures removes both labour and a common source of billing disputes.

Third-party logistics providers are a second group. Where a warehouse serves several clients, each with its own packaging and labelling habits, a system that does not rely on label position is easier to run consistently. Contract logistics firms that invoice by volume or weight also gain an auditable record for each parcel.

Systems integrators form the third group. The modular construction, the optional telescopic conveyor at the front and the option of sorting modules at the end make the system a building block in a larger inbound or outbound line, rather than a standalone machine.

Buyers whose requirement is different, for instance a multi-port layout or a vision-based station for decoding or capture rather than a six-side tunnel, may wish to compare this system with other equipment in the range, such as the Senad 4-Ports DWS or the Senad 3D Vision Non-Contact Capture Stations. Robots Europa can advise on which configuration matches a given site once the parcel profile and layout are known.

What is the Senad Six-Side Barcode Scan DWS System used for?

1. Inbound trailer unloading: paired with the telescopic conveyor, parcels move from the container straight into measurement.
2. Outbound shipment verification: each parcel's weight and volume are captured before it is handed to the carrier.
3. Dimensional-weight billing: real-time volume and weight data support accurate charging and reconciliation of carrier invoices.
4. Automated sortation feed: with sorting modules at the end, parcels leave identified and are routed without manual intervention.
5. Exception management: the abnormal handling section separates parcels that need attention from the main flow.
6. Line upgrades: the modular design allows an existing conveyor line to gain dimensioning, weighing and scanning without being rebuilt.

Pricing and Availability

The Senad Six-Side Barcode Scan DWS System is supplied on a project basis, because the final configuration depends on whether a telescopic conveyor or sorting modules are included, on the software integration required and on the layout of the line it joins. Robots Europa therefore prepares an individual quotation for each enquiry. Delivery, customs and support are arranged together with the quotation, so that the full scope is clear from the outset. To begin, please send a short description of your parcel profile and site using the quotation request available on this page.

Frequently Asked Questions

What does DWS mean?

DWS stands for dimensioning, weighing and scanning. A DWS system captures a parcel's size, weight and barcode identity automatically, so that the data can be used for billing, sorting and verification.

How many cameras does the system use?

The system uses six cameras, installed on the top and five sides. This arrangement improves the code reading rate because the label does not have to face a single reader.

What throughput does the system achieve?

Senad states a throughput of more than 2400 pieces / hour, with weight, volume and barcode measured dynamically while the parcel moves.

Can it be connected directly to truck unloading?

Yes. A telescopic conveyor can be fitted in front of the system and extended into a truck container, so that parcels are unloaded straight onto the line.

Can the system feed a sorter?

Parcel sorting modular machines can be installed at the end of the system. Parcels then pass from measurement to sortation with their data already captured.

Which barcode types does it read, and how accurate is the scale?

The manufacturer has not published the supported barcode symbologies, the weighing accuracy or the weighing range. Robots Europa confirms these details with the manufacturer as part of the quotation.

Where can I buy the Senad Six-Side Barcode Scan DWS System and what does it cost?

The system is available from Robots Europa, which supplies it across the EU and the DACH region. The cost depends on the configuration and integration scope, so it is provided in an individual quotation rather than as a list price.

Summary

The label on a parcel will always end up wherever the packer left it; the question is whether a person has to go looking for it. The Senad Six-Side Barcode Scan DWS System answers that by surrounding the parcel with cameras on the top and five sides, and by weighing and measuring it in the same pass, at more than 2400 pieces / hour. Its three-section build, the options of a telescopic conveyor at the front and sorting modules at the end, and its customisable software make it a component that fits into an existing line rather than a machine that demands a new one. For operators in the EU and the DACH region who want to turn every incoming parcel into reliable data without a manual step, this page is the starting point.
