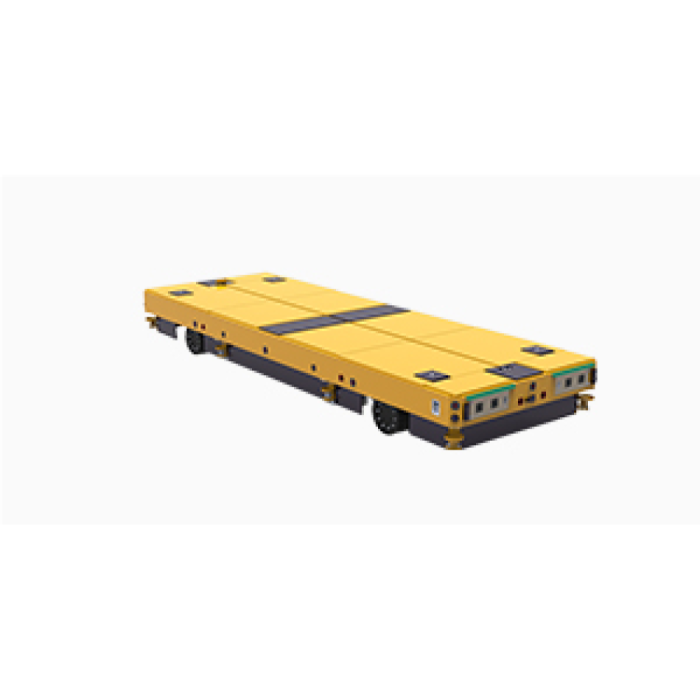

SIASUN 60T Heavy-Duty Mobile Robot (60T Heavy-Duty Mobile Robot)

In most heavy plants, a sixty-tonne load still waits for the overhead crane: the bay is fixed, the route is fixed, and every other job stops while the hook is busy. The SIASUN 60T Heavy-Duty Mobile Robot takes the opposite approach. It moves the load at floor level, slides beneath it, raises it slightly and carries it along a route set in software rather than in steel. For a shipyard block, an energy-storage module or a large press component, that turns heavy handling from a fixed asset into a flexible one, able to follow production wherever the layout requires.

Robots Europa, based in Dublin, supplies the SIASUN 60T Heavy-Duty Mobile Robot to customers across the European Union and the DACH region. Robots Europa prepares each quotation for the specific application, coordinates delivery to the site and remains the point of contact for support after installation, so that buyers in Germany, Austria, Switzerland and the wider EU deal with one European partner from the first enquiry onwards.

Background

SIASUN and its heavy-duty series

SIASUN is a Chinese manufacturer of industrial robots and automation systems, with its origins in the robotics research of the Chinese Academy of Sciences in Shenyang. Over the years its portfolio has grown from industrial arms to complete automated logistics, and the heavy-duty mobile robots are the part of that range built for loads that ordinary automated guided vehicles cannot carry. The series covers capacities from 3 t to 120 t, and the versions named in the sources are the 3T, 5T, 10T, 20T, 30T, 60T and 80T. The 60T sits in the upper part of that ladder, intended for the components that define heavy industry rather than for general pallet traffic.

Omnidirectional movement and a load-bearing wheel system

Two design choices shape the 60T. The first is omnidirectional movement, which eliminates turning-radius constraints: the vehicle can travel sideways, diagonally or rotate on the spot, which matters greatly when the load is long, wide and expensive to reposition. The second is a well-balanced wheel system that combines load-bearing and driving capabilities while protecting the floor. Rather than separating carrying wheels from drive wheels, the load is shared across the wheel set, and the floor is spared the point loads that would otherwise mark or damage it. Stable, constant-speed operation completes the picture, delivering both efficiency and smooth handling of the load in transit.

Technical Specifications

Specifications as published by the manufacturer; they are confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, the weight, the travel speed, the battery type and capacity, the runtime and charging arrangements, the IP rating, the operating temperature range, the power supply or the package contents; Robots Europa confirms these at quotation.

How does the SIASUN 60T Heavy-Duty Mobile Robot navigate and stay safe?

The 60T offers three navigation methods: SLAM, magnetic guidance and colour-tape guidance. SLAM allows the robot to build and use a map of its surroundings, which suits sites where routes change or where markings on the floor are impractical. Magnetic guidance and colour-tape guidance follow a physical path laid on or in the floor, a well-established approach where routes are fixed and repeatability is the priority. Having all three available means the method can be chosen to match the facility, rather than the facility being adapted to the robot.

Whichever method is used, the vehicle positions its load with an accuracy of ±10 mm. For a load of this class, that figure is what makes docking at a fixture, a test stand or a transfer point practical without manual correction. The lifting height of 80-100 mm gives enough travel to lift the load clear of its supports while keeping the centre of gravity low.

Safety is addressed on several levels. An emergency stop allows immediate intervention, a sound and light alarm makes the moving vehicle conspicuous to staff, and non-contact anti-collision detects obstacles before any contact occurs. On a shop floor shared with people, other vehicles and stored material, these three layers work together: the robot announces itself, avoids what it detects and can be halted at once.

What makes the 60T different from a crane or a conventional heavy transporter?

An overhead crane is bound to its runway, and a conventional heavy transporter usually needs a driver and generous turning space. The 60T removes both constraints. Omnidirectional movement lets it manoeuvre in aisles and bays where a steered vehicle would need multiple corrections, and the automated navigation removes the dependence on a dedicated operator for each move.

The operating modes extend this further. In single-robot mode, one 60T carries the load on its own. In multi-robot coordination mode, several robots work together, which opens the door to moving loads whose size or shape calls for more than one vehicle. The all-terrain adaptability, covering obstacle crossing, anti-bump behaviour and stable travel, together with a gradeability of 3%, means the robot can cope with the thresholds, joints and gentle slopes found on real industrial floors rather than only on ideal ones. The floor-protecting wheel system is a further practical point: plants that have invested in their flooring do not want each heavy move to leave its mark.

Who is the SIASUN 60T Heavy-Duty Mobile Robot for?

The 60T is aimed at manufacturers and logistics operators whose everyday loads sit in the heaviest category. Shipyards moving hull blocks and outfitting modules, aerospace plants transporting large assemblies and tooling, and producers of construction machinery handling frames and booms are natural candidates. Port and container operators considering automated horizontal transport, and energy-storage manufacturers moving battery containers and modules, form a second group. Steelworks and other heavy-industry sites, where large components must travel between process stages, complete the picture.

The choice of version depends on the heaviest load that must be moved and the margin the user wants above it. Where loads regularly approach or exceed the 60T's capacity, the SIASUN 80T Heavy-Duty Mobile Robot is the next step up. Where the heaviest loads are considerably lighter, the SIASUN 30T Heavy-Duty Mobile Robot or the SIASUN 20T Heavy-Duty Mobile Robot may be the more economical match, and the full ladder of versions is shown in the Heavy Duty Mobile Robots category. Robots Europa is glad to compare versions against the actual load profile during the quotation.

What is the SIASUN 60T Heavy-Duty Mobile Robot used for?

1. Port and container logistics — automated horizontal transport of heavy units within terminals and logistics yards.
2. New energy and energy storage — moving battery containers and storage modules between assembly, testing and dispatch.
3. Aerospace manufacturing — carrying large assemblies and tooling between workstations with precise positioning.
4. Shipbuilding — relocating hull blocks and outfitting modules across the yard and assembly halls.
5. Automotive and construction machinery manufacturing — handling heavy dies, frames and components between process steps.
6. Steel, metallurgy and heavy industry — transporting large workpieces and coils between production stages.

Pricing and Availability

The SIASUN 60T Heavy-Duty Mobile Robot is supplied on quotation, because the right configuration depends on the load, the route, the chosen navigation method and whether single-robot or multi-robot operation is planned. Robots Europa reviews these points with each customer and prepares an offer that reflects the application. Delivery, customs and support are arranged with the quotation. To begin, describe your loads and your site, and Robots Europa will respond with a tailored proposal; the quotation request is available on this page.

Frequently Asked Questions

What payload does the SIASUN 60T Heavy-Duty Mobile Robot carry?

The 60T has a payload capacity of 60 t. For heavier loads, the 80T version in the same series is the next option.

Which navigation methods are available?

The robot supports SLAM, magnetic guidance and colour-tape guidance. The method is chosen according to the site and the route layout.

How accurately does it position a load?

The positioning accuracy is ±10 mm, which allows the load to be placed at fixtures and transfer points without manual correction.

Can several robots carry one load together?

Yes. The 60T offers a multi-robot coordination mode alongside its single-robot mode.

What safety features does it have?

It is equipped with an emergency stop, a sound and light alarm and non-contact anti-collision. These help the robot operate on floors shared with people and other equipment.

Can it cope with uneven floors and slopes?

The 60T has a gradeability of 3% and is designed for obstacle crossing, anti-bump behaviour and stable travel. Its wheel system also protects the floor while carrying the load.

Where can I buy the SIASUN 60T Heavy-Duty Mobile Robot and what does it cost?

Robots Europa supplies the 60T across the EU and the DACH region. The cost depends on the configuration and application, so it is set out in an individual quotation requested on this page.

Summary

The SIASUN 60T Heavy-Duty Mobile Robot moves heavy handling off the crane runway and onto the floor, where routes can change as production does. Its payload of 60 t, positioning accuracy of ±10 mm, omnidirectional movement and choice of SLAM, magnetic or colour-tape guidance make it a credible tool for shipyards, aerospace plants, ports, energy-storage producers and heavy industry. The floor-protecting wheel system, layered safety features and multi-robot coordination round out a machine built for real industrial conditions. Robots Europa supplies, delivers and supports it across Europe, and for a quotation tailored to your loads, this page is the starting point.
