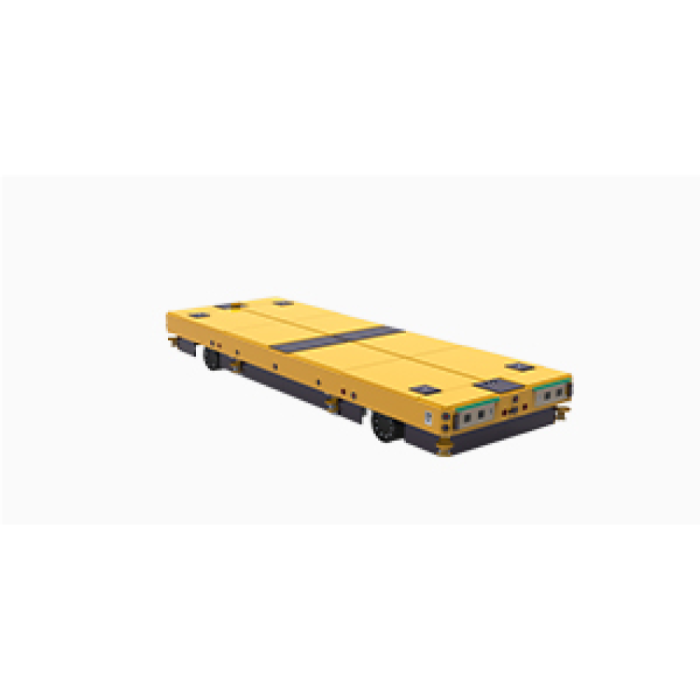

SIASUN 80T Heavy-Duty Mobile Robot (80T Heavy-Duty Mobile Robot)

In most heavy-industry plants, the heaviest object on site decides where everything else goes: the crane rail fixes the bay, the bay fixes the line, and the line then stays put for decades. The SIASUN 80T Heavy-Duty Mobile Robot reverses that logic. It is rated for a payload of 80 t and moves in any direction without a turning radius, so a ship block, a steel assembly or a containerised energy module can travel to the process, rather than the process being built around the load. For plants that have outgrown fixed transfer cars, or that simply cannot add another overhead crane, it offers a way to make ultra-heavy logistics as adaptable as the rest of the shop floor.

Robots Europa, based in Dublin, supplies the SIASUN 80T Heavy-Duty Mobile Robot to industrial customers throughout the European Union and the DACH region. We prepare each quotation around the customer's site, loads and preferred navigation method, and we coordinate delivery, import formalities and after-sales support through a single point of contact. A project of this scale therefore has one partner on the supply side, from the first enquiry to commissioning and beyond.

Background

SIASUN and its heavy-duty mobile robot range

SIASUN is a Chinese manufacturer of robotics and automation equipment whose portfolio includes autonomous mobile platforms for industrial transport. Its heavy-duty mobile robot family is organised by rated load: the sources name 3T, 5T, 10T, 20T, 30T, 60T and 80T versions, and the 80T stands at the top of that ladder. The complete family is collected in our Heavy Duty Mobile Robots category. The structure of the range makes selection straightforward: rather than stretching one platform to every task, each version is matched to a load class, so the buyer begins with the heaviest item that must move and chooses the version built for it.

Omnidirectional motion under an ultra-heavy load

What distinguishes the 80T is the pairing of a very high load capacity with omnidirectional motion. Conventional heavy transporters, such as large forklifts, tow tractors and rail-bound transfer cars, either need generous space to turn or are confined to fixed tracks, and that space or infrastructure has to be reserved permanently. SIASUN states that the omnidirectional motion of the 80T eliminates the need for a turning radius, enabling flexible routing in tight spaces. In practice this means that aisles, bays and assembly halls can be planned around the work rather than around the vehicle's manoeuvring envelope. The wheel system is designed to balance load bearing and traction, so that the robot moves smoothly while protecting factory floors, which is a genuine concern when a concentrated load of this magnitude rolls across finished concrete.

Technical Specifications

Specifications as published by the manufacturer; they are confirmed against the datasheet at quotation.

SIASUN has not published the weight, dimensions, travel speed, drive type, battery type and capacity, charging method, operating time, IP rating, fleet-management software or package contents for this model; each of these is confirmed at quotation.

How does the SIASUN 80T find its way around a plant?

The 80T supports three navigation methods, and the choice between them is largely a question of how a site is organised. SLAM navigation builds and uses a map of the surroundings, which suits facilities where routes change with production or where floor markings are impractical. Magnetic guidance follows markers installed in or on the floor and suits fixed, repeatable routes between defined stations. Colour-tape guidance follows visible lines that can be laid and altered quickly, which is useful for trial operation or for layouts that are revised from time to time. Having all three available allows a plant to start with one approach and move to another as its operation matures.

Navigation only matters if the vehicle arrives where it should. The published positioning accuracy of ±10 mm is what makes the robot useful at the end of a route as well as along it: placing a heavy assembly onto stands, aligning a component with a jig or delivering a module to a docking point all depend on stopping in the right place. Together with the lifting height of 100 mm, this allows the robot to raise a load, carry it and set it down at a defined position.

On a floor shared with people and other equipment, the safety package carries as much weight as the payload. The 80T combines an emergency stop, an audible and visual alarm, and non-contact collision avoidance, so that the vehicle signals its presence and reacts to obstacles before contact occurs. The robot can operate standalone or in multi-robot coordination; how coordinated operation is configured for a given site is part of the project discussion at quotation.

Can an 80 t mobile robot cope with real factory floors?

Brochure floors are flat and clean; real ones have expansion joints, door thresholds, gentle ramps and the occasional piece of debris. SIASUN describes the 80T as having all-terrain adaptability, with obstacle crossing and stable driving, and publishes a gradeability of 3%. That figure should be compared with the steepest incline on the intended routes during site planning, since ramps between halls or at loading areas are often where a heavy-transport project is decided.

The other half of the question concerns the floor rather than the robot. The wheel system is designed to protect factory floors while carrying the load, but the capacity of the building's slab, its joints and any trenches or covers along the route remain matters for the site survey. Robots Europa raises these points as part of the quotation, so that route planning, floor assessment and the choice of navigation method are considered together rather than discovered after delivery.

Who is the SIASUN 80T Heavy-Duty Mobile Robot for?

The 80T is aimed at operations whose individual loads sit at the very top of the industrial scale. Shipyards moving hull blocks between fabrication and assembly, aerospace manufacturers handling large structures and tooling, steelworks and metallurgical plants transporting coils, ingots or heavy fabrications, port and container terminals, and manufacturers of new energy and energy-storage systems are the natural candidates. Automotive and construction-machinery producers that move heavy frames, moulds or dies between stations also fall within its application areas.

Within those industries, the strongest case is made by plants where floor space is tight, layouts change, or fixed cranes and rails have become a constraint. Where the heaviest item to be moved is well below the 80T's class, a smaller version of the range is likely to be the more proportionate choice: the SIASUN 60T Heavy-Duty Mobile Robot, the SIASUN 30T Heavy-Duty Mobile Robot or the SIASUN 20T Heavy-Duty Mobile Robot. Robots Europa is glad to compare versions against a customer's actual load list before a quotation is issued.

What is the SIASUN 80T Heavy-Duty Mobile Robot used for?

1. Port and container logistics: moving heavy units within terminals and yards where routes and stacking positions shift.
2. New energy and energy storage: transferring large battery and energy-storage assemblies between production and test areas.
3. Shipbuilding: carrying hull blocks and heavy sections from fabrication halls to assembly positions.
4. Aerospace manufacturing: positioning large structures and tooling precisely within assembly halls.
5. Automotive and construction machinery: moving heavy frames, moulds and dies between production stations.
6. Steel, metallurgy and heavy industry: transporting coils, castings and heavy fabrications without relying solely on overhead cranes.

Pricing and Availability

Robots Europa supplies the SIASUN 80T Heavy-Duty Mobile Robot on the basis of a project quotation, because the right configuration depends on the loads, routes, navigation method and site conditions involved. Delivery, customs clearance and support are arranged together with the quotation. To begin, please describe your heaviest loads, the layout of the routes and the industry you work in, using the quotation request available on this page.

Frequently Asked Questions

What payload does the SIASUN 80T carry?

The SIASUN 80T Heavy-Duty Mobile Robot has a payload capacity of 80 t, the highest in the SIASUN heavy-duty range named in the sources.

Which navigation methods does the 80T support?

It supports SLAM navigation, magnetic guidance and colour-tape guidance. The most suitable method depends on how fixed or changeable your routes are.

Does the 80T need a turning radius?

No. Its omnidirectional motion eliminates the need for a turning radius, which allows flexible routing in tight spaces.

How precisely does it position a load?

The published positioning accuracy is ±10 mm, and the lifting height is 100 mm.

What safety features does the robot have?

The 80T is equipped with an emergency stop, an audible and visual alarm, and non-contact collision avoidance.

Can several units operate together?

Yes, the robot supports multi-robot coordination as well as standalone operation. The configuration for your site is defined during the quotation.

Where can I buy the SIASUN 80T Heavy-Duty Mobile Robot and what does it cost?

Robots Europa supplies the SIASUN 80T Heavy-Duty Mobile Robot across the EU and the DACH region. The cost depends on configuration and project scope, so it is provided in a quotation that also covers delivery, customs and support.

Summary

The heaviest load in a plant has traditionally dictated its layout, through crane bays, rails and the clear space that large vehicles need to turn. The SIASUN 80T Heavy-Duty Mobile Robot challenges that constraint by combining an 80 t payload with omnidirectional motion, a choice of SLAM, magnetic or colour-tape navigation, ±10 mm positioning accuracy and a safety package designed for shared floors. For shipyards, steelworks, ports, aerospace and energy manufacturers that want their heaviest logistics to follow the process rather than define it, the 80T is a serious option, and Robots Europa supports the project from site questions to delivery. For a quotation tailored to your loads and routes, this page is the starting point.
