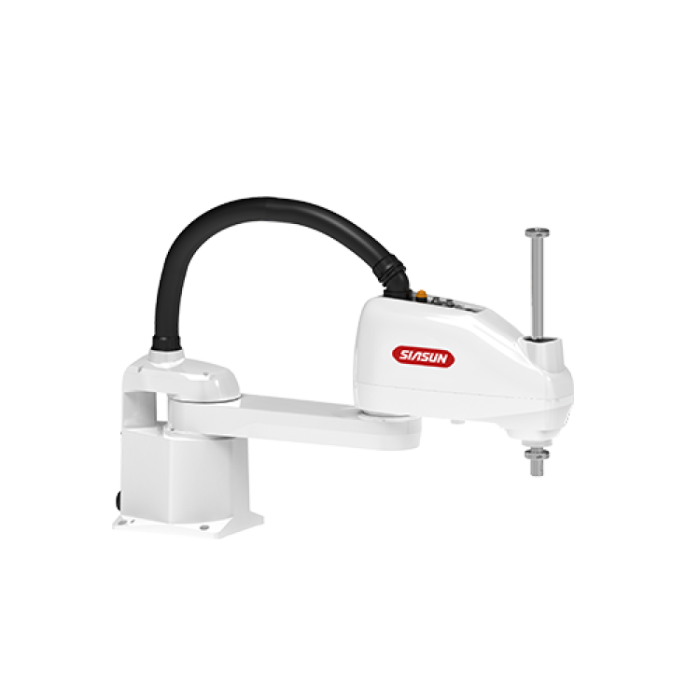

SIASUN SA10A-10/0.60 (SA10A-10/0.60)

On a busy electronics or battery line, floor space and headroom are always in short supply, and the robot that earns its place is usually the one that does the most with the least arm. The SIASUN SA10A-10/0.60 is built around that idea. It combines a 10kg payload with a 600mm reach and a low overall height in a new-generation SCARA design. The result is a short, stiff arm that carries a substantial load and places it with a precision measured in hundredths of a millimetre.

Robots Europa, based in Dublin, supplies the SA10A-10/0.60 to manufacturers and system integrators throughout the European Union and the DACH region. We prepare every quotation to suit your application. We also organise delivery and customs clearance to your site, and we remain your point of contact for support after the robot has entered production.

Background

Siasun and its place in industrial automation

Siasun is a Chinese robotics and automation manufacturer. Its portfolio covers industrial arms, mobile robots and complete automation systems. Its SCARA range is organised into series by payload class, and each series is offered in several reach versions. This allows a production engineer to keep the same mechanical family and control platform while changing the working envelope from one cell to the next. The SA10A series is the newest generation in that range. Siasun designed it to answer the demands of compact, high-throughput assembly, where cycle after cycle of fast, accurate movement matters more than sheer size.

The SA10A generation and its dual-support structure

Two design decisions define the series. The first is a modular construction, which lets the robot adapt to a wider range of automation tasks while keeping maintenance costs down. The second is a dual-support structure combined with all-new proprietary core components. Together they give the arm greater load capacity, higher precision, faster movement, more rigidity and less vibration than a conventionally supported arm. The main body is also lighter, which makes installation quicker and simpler. Its lower overall height eases the space constraints that so often shape a cell layout under conveyors, enclosures or overhead services. The robot works with a new generation of S series control cabinet and supports several programming and teaching methods.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the weight, power supply, maximum speed, cycle time, communication interfaces, controller model, scope of delivery, mounting method, operating temperature or axis motion ranges; we confirm these at quotation.

What does the dual-support structure change in practice?

In a SCARA robot, the horizontal arm links extend out from the base. Any flex in the joints shows up as overshoot, settling time and a small loss of accuracy at the tool. Supporting the arm structure at two points instead of one addresses this at its source. A stiffer arm settles faster at the end of each move, vibrates less while carrying a load and keeps its accuracy when the payload rises towards the top of its rating. On the SA10A-10/0.60, this rigidity supports the repeatability figures in the table above: ±0.02mm across the combined first and second joints, ±0.01mm on the vertical axis and ±0.01° in rotation.

For a production engineer, these characteristics matter in three situations. The first is press-fitting or inserting components where tolerances are tight. The second is handling heavier grippers or multi-part tooling without giving up placement accuracy. The third is running fast, repetitive cycles in which vibration would otherwise build up. The new proprietary core components work alongside the structure, so the gains come from the mechanical design itself rather than from software compensation alone.

Is IP20 protection suitable for my production environment?

IP20 is the standard rating for robots intended for clean, dry indoor environments. It protects against contact with fingers and larger solid objects, but it offers no protection against water. This suits the industries the SA10A series targets: electronics assembly halls, battery cell and module lines, and photovoltaic production, all of which are typically controlled environments. If your cell involves coolant, washdown, heavy dust or condensation, please describe the conditions in your enquiry. Robots Europa will then discuss whether the application is suitable, or whether a different solution from the Siasun industrial robot range would serve you better.

Who is the SIASUN SA10A-10/0.60 for?

The SA10A-10/0.60 is aimed first at manufacturers in the 3C sector: computers, communications and consumer electronics. In these sectors, compact cells and fine placement accuracy go hand in hand. Lithium battery producers are a second natural audience, particularly for handling cells, modules and components at assembly and test stations. Photovoltaic manufacturers and automotive electronics suppliers complete the core group. In both, the combination of payload, precision and a low build height helps to fit automation into existing lines.

System integrators will also value the series' practical features. The abundant user cables routed through the main unit simplify the connection of end-of-arm tooling. The choice of programming and teaching methods lets the robot fit into an integrator's established workflow. The lighter body also shortens installation time on site.

If your cell layout calls for a different working envelope, compare the SIASUN SA10A-10/0.70 (SA10A-10/0.70) and the SIASUN SA10A-10/0.80 (SA10A-10/0.80). They belong to the same series, and each has its own page with its own figures. For an overview of every arm in this class, see our SCARA category.

What is the SIASUN SA10A-10/0.60 used for?

1. Electronics assembly: placing, inserting and fastening components on 3C product lines where precision governs yield.
2. Battery production: transferring lithium battery cells and parts between process and inspection stations.
3. Photovoltaic manufacturing: handling solar components gently and accurately within controlled production halls.
4. Automotive electronics: assembling control units, sensors and connectors to consistent quality standards.
5. Pick-and-place: moving parts from feeders, trays or conveyors at a steady, repeatable rhythm.
6. Machine and test loading: feeding parts into test fixtures, dispensers or small processing machines inside compact cells.

Pricing and Availability

Robots Europa supplies the SIASUN SA10A-10/0.60 on a quotation basis. Each application differs in tooling, controller configuration and integration requirements, so a tailored offer is more useful than a standard price. Tell us about your application, your target cycle and your installation site, and we will prepare an offer that matches your cell. Delivery, customs and support are arranged with the quotation. Our team serves customers throughout the EU and the DACH region, and the quotation form is available on this page.

Frequently Asked Questions

What repeatability does the SA10A-10/0.60 achieve?

Repeatability is ±0.02mm across the combined J1 and J2 joints, ±0.01mm on J3 and ±0.01° on J4.

Can the robot be used in wet or dusty conditions?

The robot is rated IP20, which suits clean, dry indoor environments. For cells exposed to liquids or heavy dust, please discuss the conditions with Robots Europa before ordering.

Which controller does it use?

The robot works with a new generation of Siasun's S series control cabinet.

How is the robot programmed?

The SA10A series supports several programming and teaching methods, so it can be integrated into different engineering workflows.

How easy is it to connect tooling?

The main unit has abundant user cables, which simplifies the routing of signals and supplies to grippers and other end-of-arm tools.

Which industries is it designed for?

Its primary industries are 3C electronics, lithium battery, photovoltaic and automotive electronics, together with related sectors.

Where can I buy the SIASUN SA10A-10/0.60 and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on configuration and integration scope, so we provide it in a tailored quotation. Please request one through the form on this page.

Summary

The SIASUN SA10A-10/0.60 answers a familiar problem on crowded production lines: how to fit real payload and fine precision into limited space. Its dual-support structure and new core components give a short arm the rigidity to carry 10kg and to repeat its movements within hundredths of a millimetre. Its low build height and lighter body make it easier to place in a cell and quicker to commission. The modular design keeps maintenance costs in check, and the S series control cabinet and flexible teaching methods ease integration. For electronics, battery, photovoltaic and automotive electronics producers in Europe who need a compact SCARA with substance, this page is the starting point.
