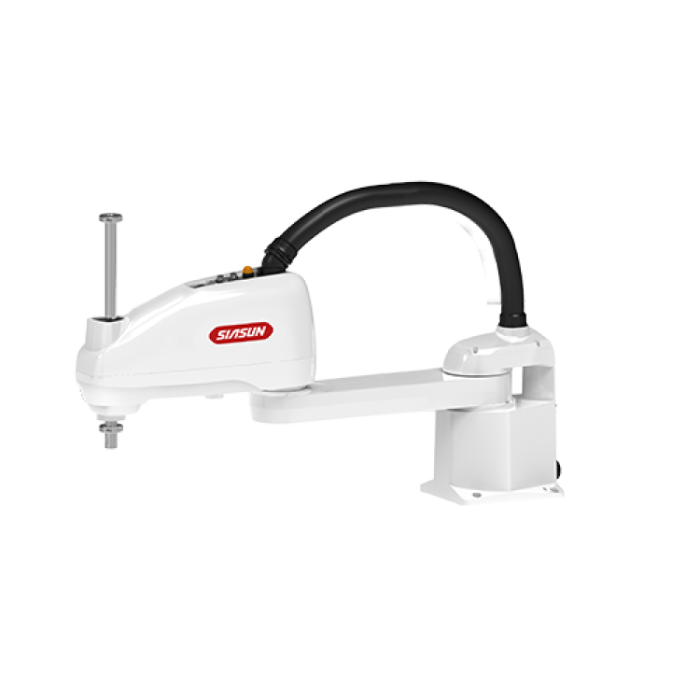

SIASUN SA10A-10/0.80 (SA10A-10/0.80)

A long SCARA arm usually forces a compromise: the further the tool reaches, the more the forearm tends to flex and ring when it stops. The SIASUN SA10A-10/0.80 (SA10A-10/0.80) addresses that tension directly. It pairs the longest reach in its series with a dual-support structure designed for rigidity and low vibration, and it keeps the overall height of the robot low, so a wide working envelope does not demand a tall, crowded cell. For production engineers who need to cover a broad worktable while keeping placements tight, it is a deliberate answer rather than a stretched version of a smaller arm.

Robots Europa, based in Dublin, sells the SIASUN SA10A-10/0.80 and supplies it to customers throughout the European Union and the DACH region. Robots Europa prepares each quotation, arranges delivery to your site and remains your point of contact for technical questions and after-sales support, so that the selection, import and commissioning of the robot are handled through a single European partner.

Background

Siasun and the SA10A generation

Siasun is a Chinese manufacturer of industrial robots and automation equipment whose range covers articulated arms, mobile robots and SCARA robots, among others. The SA10A series is described by the manufacturer as a brand-new generation of SCARA robots, and it sits within a broader Siasun SCARA line that you can browse in our SCARA category, alongside the wider Industrial Robots range. Within the series, the model designation follows a consistent pattern: the figure after the slash indicates the reach, which makes the SA10A-10/0.80 the long-reach member of the family.

Dual support and modular construction

Two design decisions define this generation. The first is the dual-support structure, which Siasun states delivers a larger load capacity, high rigidity and low vibration. For a horizontal arm working at the edge of its envelope, stiffness is what allows the tool to settle quickly and accurately after each move. The second is a modular design, which the manufacturer says meets the needs of more automation scenarios while reducing maintenance costs. Around these, Siasun has added abundant user cables on the main unit, a new generation of S series control cabinet and support for multiple programming and teaching methods. The main body is lighter, which makes deployment simpler, and the overall height is lower, which reduces space constraints inside machines and enclosures.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the weight, the rated power supply, the cycle time, the joint speeds and ranges, the communication interfaces, the mounting method, the exact controller model or the contents of the box; these are confirmed at quotation.

How does the SA10A-10/0.80 compare with the SA10A-10/0.60 and SA10A-10/0.70?

The three versions share the SA10A platform: the dual-support structure, the modular construction, the user cabling on the main unit and the S series control cabinet. The decisive difference is reach. The SA10A-10/0.80 reaches 800mm, whereas the SIASUN SA10A-10/0.60 (SA10A-10/0.60) reaches 600mm. The SIASUN SA10A-10/0.70 (SA10A-10/0.70) sits between them in the series; its reach figure is given on its own page.

Choosing between them is a question of geometry rather than prestige. A longer arm covers a larger area from one mounting point, which can mean serving several feeders, trays or fixtures without a second robot or a linear axis. A shorter arm occupies less floor space, sweeps a smaller footprint and is easier to guard in a compact cell. If your layout places parts far apart, or if one robot must serve a conveyor and two stations at once, the 800mm version is the natural candidate. Where everything lies close to the robot base, a shorter sibling may be the more economical fit. The repeatability, payload and protection figures in the table above apply to the SA10A-10/0.80; the corresponding figures for the other versions should be taken from their own specifications.

What does IP20 mean for where the SA10A-10/0.80 can be installed?

The SA10A-10/0.80 carries an IP20 rating. Under the IEC ingress protection scheme, this indicates protection against solid objects of roughly finger size and no specified protection against water. In practice, it is a robot for clean, dry indoor environments: electronics assembly halls, battery module lines, solar cell handling areas and automotive electronics production, which are exactly the sectors Siasun names as its primary applications. It is not intended for washdown areas, coolant spray or dusty machining zones without additional protection. If your process involves liquids, fine particles or a cleanroom classification, please describe the environment in your enquiry so that Robots Europa can advise on suitability.

Who is the SIASUN SA10A-10/0.80 for?

The first group of buyers is manufacturers in the 3C sector, meaning computers, communications and consumer electronics, where boards, housings and components must be picked, placed and assembled with consistent accuracy. The repeatability on the J1 and J2 axes, together with fine control on the vertical and rotary axes, suits these tasks.

The second group is producers in the lithium battery and photovoltaic industries. Cell handling, module assembly and wafer or panel component transfer frequently involve wide workspaces, and the long reach of this version allows one arm to cover more of the line.

The third group is automotive electronics suppliers, whose sensor, connector and control unit assembly benefits from a stiff arm that settles quickly after each move.

Finally, system integrators building turnkey cells across the EU and DACH region will appreciate the modular design, the user cabling on the main unit and the choice of programming and teaching methods, which simplify integration into varied projects. Buyers whose cells are compact, with all parts within a short radius of the base, should also look at the SA10A-10/0.60 or the SA10A-10/0.70, as a shorter arm may suit a smaller footprint better.

What is the SIASUN SA10A-10/0.80 used for?

1. Electronics assembly: placing components, fitting housings and handling boards on 3C production lines.
2. Battery production: transferring lithium battery cells and parts between stations in module and pack assembly.
3. Photovoltaic manufacturing: handling solar components across a wide worktable with minimal vibration.
4. Automotive electronics: assembling sensors, connectors and control units where repeatable placement matters.
5. Machine tending and test loading: loading and unloading inspection, testing or processing equipment within a compact cell.
6. Sorting and kitting: picking parts from trays or conveyors and arranging them into kits for downstream assembly.

Pricing and Availability

The SIASUN SA10A-10/0.80 is supplied on quotation, so that the configuration, accessories and documentation match your application. Please send Robots Europa a brief description of your process, the parts to be handled and your site location, and we will prepare a tailored offer. Delivery, customs and support are arranged together with the quotation. A quotation for the SIASUN SA10A-10/0.80 can be requested through the enquiry form available on this page.

Frequently Asked Questions

What payload does the SIASUN SA10A-10/0.80 handle?

The SA10A-10/0.80 has a payload of 10 kg (22 lbs). When sizing your application, please include the weight of the gripper or tool as well as the part itself.

How far does the SA10A-10/0.80 reach?

Its reach is 800mm, the longest of the three SA10A versions named by the manufacturer. The SA10A-10/0.60 reaches 600mm.

How repeatable is the robot?

Repeatability is ±0.02mm on J1+J2, ±0.01mm on J3 and ±0.01° on J4. These figures make it suitable for precise pick-and-place and assembly work.

Which controller does it use?

The robot works with a new generation of S series control cabinet and supports multiple programming and teaching methods. The exact controller model has not been published and is specified in the quotation.

Can it be used in wet or dusty environments?

The robot is rated IP20, which suits clean, dry indoor environments. For processes involving liquids or fine dust, please describe the conditions so that Robots Europa can advise.

What does the modular design offer?

Siasun states that the modular design allows the robot to meet the needs of more automation scenarios while reducing maintenance costs. The abundant user cables on the main unit also make it easier to route signals and air to the end effector.

Where can I buy the SIASUN SA10A-10/0.80 and what does it cost?

You can buy the SIASUN SA10A-10/0.80 from Robots Europa, which supplies customers across the EU and the DACH region from Dublin. The cost depends on configuration and delivery, so please request a quotation for an offer tailored to your project.

Summary

The SIASUN SA10A-10/0.80 resolves the familiar trade-off of long-reach SCARA robots by combining an 800mm reach with a dual-support structure built for rigidity and low vibration, while a lighter body and lower overall height keep the cell compact. A 10 kg (22 lbs) payload, fine repeatability on every axis, modular construction and the new S series control cabinet make it a strong fit for 3C, lithium battery, photovoltaic and automotive electronics production. Where a wide working area must be covered without sacrificing precision, this is the version of the SA10A series to consider, and where space is tighter, its shorter siblings are close at hand. For a quotation, delivery and support from Robots Europa, this page is the starting point.
