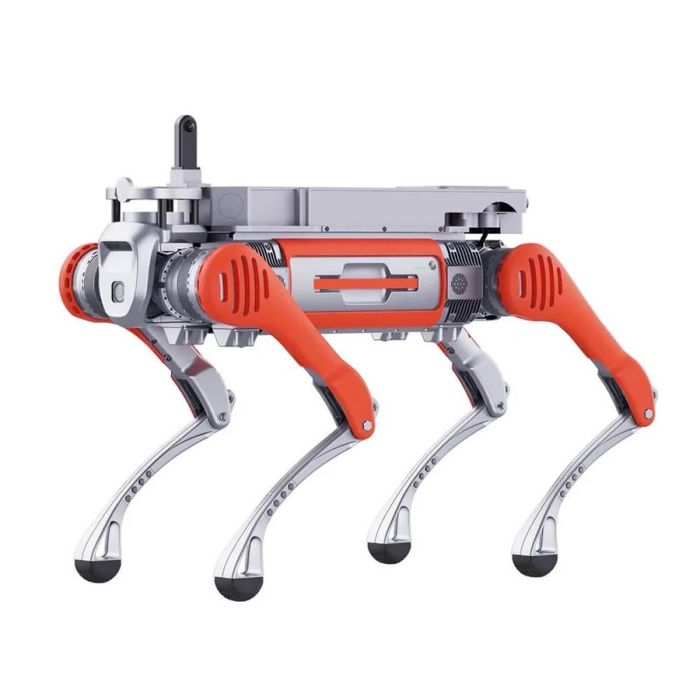

Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B)
In stock
- BRAND:
- UNITREE ROBOTICS
- PART #:
- B2-XF2-B
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Unitree-B2-XF2-B
Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B)
Every firefighting tactic is, at heart, a negotiation with distance: close enough to put water on the seat of the fire, far enough away that nobody is hurt doing it. The Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) changes the terms of that negotiation by sending a machine into the zone that crews would rather not enter. It walks rather than rolls, it carries interchangeable firefighting modules, and it relays a live picture to the people making decisions outside. The first steps into heat and smoke are taken by a robot, not a person.
Robots Europa, based in Dublin, supplies the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) to fire and rescue services, industrial operators and research organisations across the European Union and the DACH region. Robots Europa prepares the quotation, arranges delivery to the customer's site and remains the point of contact for technical support once the robot is in service.
Background
Unitree Robotics and the B2 platform
Unitree Robotics is a manufacturer of legged robots whose range runs from compact quadrupeds for teaching and research to heavier platforms for industrial work. The B2 belongs to the industrial end of that range. It is a quadruped built to carry equipment and work outdoors, where uneven ground, debris and steps defeat many wheeled machines. The Fire Rescue series takes this base robot and integrates it deeply into fire rescue applications. The series comprises four versions: XF1, XF2, F2 and F2D. This page covers the B2-XF2-B.
Modular firefighting, cooling and visualisation
The defining idea of the series is modularity. The product supports modular functions and replacements, so the robot can be equipped for the task in hand rather than built around a single tool. The series includes a water cannon module that delivers both water and foam, as well as an Air Blower Robot Dog that extinguishes forest fires through high-speed airflow. A drencher system allows the robot to keep operating in high-temperature environments without being affected by the heat, which improves fire-extinguishing efficiency. A visualisation platform transmits a clear video stream over long distances, recreates the scene at the command post and gives commanders visual information for their rescue decisions. Around these systems sits a body made from composite metal, which is wear-resistant, mechanically strong, dust-proof and waterproof. Batteries can be replaced quickly while the robot remains watertight.
Technical Specifications
The figures below apply to different parts of the platform. Each row states whether it applies to the water cannon module, to the B2 Fire Rescue series as a whole or to the B2 base robot.
| Specification | Value |
|---|---|
| Water cannon pitching range (water cannon module) | 5 - 85°, with body-compensated angle |
| Water cannon flow rate (water cannon module) | 40L/s, for water and foam |
| Water cannon firing range (water cannon module) | 60m |
| Maximum step height, ascending and descending (facing front) | 40cm |
| Joint performance | Increased by 170% |
| Protection rating (B2 Fire Rescue series) | IP67 |
| Payload capacity (B2 Fire Rescue series) | Over 40 kg |
| Operating temperature (B2 base robot) | -20°C to 55°C |
| Battery capacity (B2 base robot) | 45 Ah (2250 Wh), Voltage 58 V |
| Running speed (B2 base robot) | 6 m/s |
| Sensors (B2 base robot) | 3D-LiDAR × 1 + Depth camera × 2 + Optical camera × 2 |
| Interfaces (B2 base robot) | 1000M-Base-Ethernet × 4, USB 3.0 × 4, 12V × 4, 5V × 1, 24V × 4, BAT × 1 |
| Body material | Composite metal; wear-resistant, high mechanical strength, dust-proof and waterproof |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.
The manufacturer has not published the weight, the exact dimensions of this version, the contents of the box, the water tank and hose details or the software and SDK support for this version; Robots Europa confirms these at quotation.
What does the water cannon module bring to a fire scene?
A conventional monitor needs a crew to position it and, often, to stay near it. The water cannon module of the B2 Fire Rescue series moves that monitor on legs. Its pitching range of 5 - 85° uses body-compensated angle control, so the robot's own posture contributes to aiming the jet. That range covers a low, flat attack on a ground-level fire as well as a steep, high trajectory over obstacles. The module delivers a water flow rate of 40L/s and reaches a firing range of 60m. Because it handles foam as well as water, it suits fuel and chemical fires as well as ordinary combustibles.
The value lies in combining the two halves: the cannon provides reach, and the quadruped provides the ability to bring that reach to a position no vehicle can access. A robot that climbs and descends steps of up to 40cm facing front can work its way through a building or an industrial plant to a firing position. It then stays there while the drencher system keeps it cool.
How does the B2 Fire Rescue cope with heat, water and rough ground?
Firefighting is unkind to electronics. The series answers with several layers of protection. The B2 Fire Rescue series carries an IP67 protection rating. The composite metal body is dust-proof and waterproof and resists the wear of rubble, gravel and repeated deployment. The drencher system addresses heat directly, allowing the robot to keep operating in high-temperature environments. The B2 base robot is specified for operating temperatures of -20°C to 55°C.
Endurance in the field depends as much on logistics as on hardware. The quick battery replacement keeps the robot watertight, so a crew can swap the pack and return the robot to work without compromising its sealing. The B2 base robot carries a 45 Ah (2250 Wh) battery at 58 V. Joint performance has increased by 170%, which underpins the robot's ability to carry equipment over difficult terrain; the series payload capacity is over 40 kg.
Who is the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) for?
The clearest fit is municipal and regional fire and rescue services that want to keep personnel out of the most dangerous positions during structural, industrial or hazardous-materials incidents. For these services, the robot extends what an incident commander can see and reach without committing a crew.
Industrial emergency teams form the second group. Operators of chemical plants, energy facilities, warehouses, tunnels and transport infrastructure face fires in places where access is restricted and the risk to responders is high. A legged robot with a foam-capable cannon and long-distance video suits these sites well.
Forestry and wildland fire organisations should look at the series' Air Blower Robot Dog, which extinguishes forest fires through high-speed airflow. Robots Europa can advise which version of the series suits that work. Training academies, universities and research institutes studying robotic emergency response complete the picture: the B2 base robot's Ethernet and USB 3.0 interfaces and its LiDAR and camera suite provide a foundation for integration work.
Organisations whose requirement is general industrial mobility rather than firefighting can also compare the Unitree B2-W Wheeled Quadruped Robot with Robots Europa before deciding.
What is the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) used for?
- Interior fire attack: bringing water or foam to a fire inside a structure while crews remain at a safer distance.
- Industrial and chemical fires: applying foam at plants and depots where approaching on foot carries serious risk.
- Reconnaissance for command: streaming live video from inside the incident to support decisions at the command post.
- Sustained cooling and exposure protection: holding a firing position in high heat with the drencher system active.
- Access across obstacles and stairs: reaching positions over rubble and steps where wheeled or tracked vehicles cannot follow.
- Training and research: developing robotic tactics and integrations for fire and rescue organisations and academic programmes.
Pricing and Availability
Robots Europa supplies the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) by quotation, so that the module configuration, accessories and documentation can be matched to the intended deployment. Delivery, customs and support are arranged together with the quotation. To begin, tell us about your application, your site and your operating conditions; the request form is available on this page.
Frequently Asked Questions
Can the robot fight fires with foam as well as water?
Yes. The water cannon module of the B2 Fire Rescue series can be used for both water and foam, with a flow rate of 40L/s.
How far can the water cannon reach?
The water cannon module has a firing range of 60m and a pitching range of 5 - 85° with body-compensated angle.
Can the robot climb stairs?
Yes. When ascending and descending steps facing front, the maximum step height is 40cm.
How does the robot survive high temperatures?
A drencher system lets the robot keep operating in high-temperature environments without being affected by heat. The B2 Fire Rescue series also carries an IP67 protection rating.
Can the battery be changed during an operation?
Yes. The battery can be replaced quickly while the robot maintains its water-tightness, which shortens the time it spends out of action.
Which firefighting module comes with the B2-XF2-B?
The series supports modular functions and replacements. The module configuration of the B2-XF2-B is set out in the offer from Robots Europa.
Where can I buy the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) and what does it cost?
Robots Europa supplies it across the European Union and the DACH region. The cost depends on the configuration, so please request a quotation through this page.
Summary
Firefighting has always been shaped by how close a person can safely get. The Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) moves that boundary by putting a legged, heat-tolerant and watertight machine where the risk is greatest. It can carry a water and foam cannon or other modules, climb steps, keep working under a drencher's spray and stream the scene to the command post. For fire services, industrial emergency teams and research organisations in the EU and the DACH region, Robots Europa handles quotation, delivery and support. For anyone who wants to put distance between their people and the fire, this page is the starting point.
