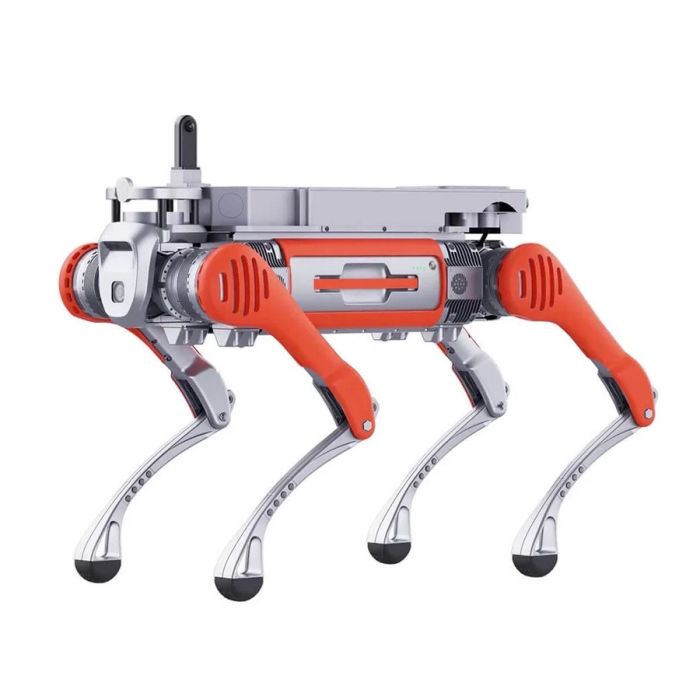

Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A)
In stock
- BRAND:
- UNITREE ROBOTICS
- MODEL:
- B2-XF2-A
- PART #:
- B2-XF2-A
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Unitree-B2-XF2-A
Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A)
A fire engine stops at the kerb. The real work begins beyond it: on stairs, in smoke-filled corridors and across debris that no vehicle can cross. Wheeled and tracked machines have carried firefighting equipment closer to the seat of a fire for years, but a stairwell still stops most of them. The Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A) meets that problem on four legs. It is a quadruped derived from Unitree's B2 industrial platform and rebuilt for heat, water and the demands of fire rescue. Its Laser SLAM kit lets it find its own way through a building whose layout is hidden by smoke.
Robots Europa, based in Dublin, supplies the B2-XF2-A to fire and rescue services, industrial safety teams and research organisations throughout the European Union and the DACH region. Robots Europa prepares each quotation for the configuration the buyer specifies. From its European base, it also arranges delivery, import formalities and after-sales support, so a brigade in Munich, Vienna or Lyon deals with one supplier from enquiry to commissioning.
Background
Unitree Robotics and the B2 lineage
Unitree Robotics builds legged robots for consumer, research and industrial markets. The B2 is its industrial-class quadruped, designed to carry equipment and to keep moving over ground that defeats lighter machines. The fire rescue models are based on this proven Unitree B2 and have been specifically designed for hazardous environments. The base B2 is a substantial machine. In its base configuration it stands approximately 1098 mm × 450 mm × 645 mm and weighs approximately 75 kg including its battery. It carries a 3D-LiDAR, two depth cameras and two optical cameras. A platform of that class can carry a firefighting payload without losing the agility that makes legs worthwhile.
A modular platform built for fire rescue
Unitree has integrated the fire rescue versions deeply into fire service applications, and the product supports modular functions and replacements. Rather than designing a single-purpose machine, Unitree has built a fire-hardened B2 that accepts different tools for different incidents. The line includes a water cannon for structural firefighting and an air blower that extinguishes forest fires through high-speed airflow. A drencher system keeps the robot operating in high-temperature environments without being affected by the heat, which improves fire-extinguishing efficiency. The body is made of composite metal: wear-resistant, mechanically strong, dust-proof and waterproof. The battery can be replaced quickly while the robot stays watertight, so a unit can return to the incident without a lengthy turnaround.
Technical Specifications
| Specification | Value |
|---|---|
| Step height, ascending and descending (facing front) | Maximum 40cm |
| Joint performance | Increased by 170% |
| Water cannon (fire rescue module) | Pitching range 5 - 85° (body-compensated angle); water flow rate 40L/s; water and foam; firing range 60m |
| Dual-optic PTZ camera | 4MP visible light with 33× optical zoom + thermal imaging camera (640×512 pixels) |
| 3D laser mobile scanning system | 16 laser beams, 320,000 points/second, 120m range, 1cm accuracy |
| Dimensions (standing), B2 base robot | Approx. 1098 mm × 450 mm × 645 mm |
| Total weight, B2 base robot | Approx. 75 kg (including battery) |
| Battery, B2 base robot | 45 Ah (2250 Wh), voltage 58 V |
| Protection rating, B2 base robot | IP67 |
| Running speed, B2 base robot | 6 m/s |
| Sensors, B2 base robot | 3D-LiDAR × 1 + Depth camera × 2 + Optical camera × 2 |
| Operating temperature, B2 base robot | -20°C to 55°C |
| Included battery | 1 × Unitree B2 Battery (45 Ah / 2250 Wh) |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the remote controller model or the wireless connectivity of the fire version; both are confirmed at quotation.
What does the XF2 designation add?
The letters in a Unitree fire rescue model code define what the robot can do by itself. Models designated XF2 or F2D include the Laser SLAM kit for autonomous navigation. Models designated XF1, or F2 without the D, are delivered without SLAM navigation. The B2-XF2-A belongs to the first group.
In practice, this sets the operating model. A robot without SLAM depends on its operator for every metre of movement, which is demanding when the camera image is filled with smoke and the operator is working from a command post outside. With SLAM, the robot builds a map of its surroundings as it moves and localises itself within that map. The crew can then send it along a route, bring it back along a known path, or work with a map of a building they cannot yet enter. For incidents in large structures such as warehouses, car parks, tunnels or industrial halls, that capability often decides whether a quadruped is a remote-controlled tool or a reconnaissance asset.
How does the fire rescue version differ from the standard B2?
The base B2 already carries an IP67 protection rating and operates from -20°C to 55°C. Fire rescue, however, means working near radiant heat, standing water, foam, ash and falling debris. Unitree's response is a set of targeted changes rather than a new robot. Joint performance has increased by 170%, which matters when the robot carries a cannon and must absorb the reaction of a high-flow water jet. The composite metal body adds wear resistance and mechanical strength. The drencher system lets the robot keep working in high-temperature environments.
Mobility has been tuned for the buildings firefighters actually enter. The robot ascends and descends steps up to a maximum of 40cm facing front, and it keeps excellent stability and balance when climbing fire stairs. The water cannon has a pitching range of 5 - 85° with a body-compensated angle, a water flow rate of 40L/s and a firing range of 60m, and it works with both water and foam. The camera and scanning payloads extend the robot's sensing. A dual-optic PTZ camera pairs a 4MP visible-light camera with 33× optical zoom and a thermal imaging camera of 640×512 pixels. A 3D laser mobile scanning system offers 16 laser beams, 320,000 points per second, a 120m range and 1cm accuracy. The payloads shown in Unitree's material are not included in the scope of delivery, so Robots Europa specifies the exact equipment of each unit in the quotation.
Who is the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A) for?
The first group is municipal and regional fire and rescue services that want to reduce the time crews spend in the most dangerous part of an incident. A legged robot that climbs stairs, carries a thermal camera and delivers water or foam lets an incident commander look and act before committing firefighters to an interior attack.
The second group is industrial fire brigades at chemical plants, refineries, logistics centres and energy sites. Their premises combine large floor areas, stairs and gantries, and their hazards are often known in advance. Autonomous navigation and modular payloads suit a robot that is kept on site and deployed against predefined scenarios.
Forestry and wildland fire organisations are a third audience, because the line includes an air blower configuration designed for forest fires. Training academies, testing institutes and research groups working on firefighting robotics make up the fourth, using the platform to develop tactics, procedures and integration with existing command systems.
Buyers comparing equipment packages within the same line can review the other XF2 configurations, such as the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B) and the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C), or browse the wider Unitree B2 category. Organisations that plan to steer every movement manually may also ask Robots Europa about the models delivered without SLAM navigation.
What is the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A) used for?
- Interior reconnaissance: entering smoke-filled buildings ahead of crews to show conditions, obstacles and casualties.
- Hotspot detection: locating the seat of a fire and hidden heat sources with thermal imaging.
- Water and foam attack: delivering water or foam with a cannon from positions too hot or unstable for people.
- Forest fire suppression: knocking down vegetation fires with high-speed airflow from the air blower configuration.
- Stairwell and multi-storey access: climbing fire stairs to reach upper floors and basements that wheeled robots cannot.
- 3D mapping after an incident: scanning damaged structures to support investigation and safe re-entry planning.
Pricing and Availability
The cost of a fire rescue quadruped depends on the configuration, the payload modules, the accessories and the training an organisation requires. For that reason, Robots Europa provides every unit by individual quotation rather than at a fixed list price. Delivery, customs and support are arranged with the quotation, so the offer covers the full route from Dublin to the buyer's station or site anywhere in the EU or the DACH region. To begin, please send your requirements, intended applications and any tender documents using the enquiry form available on this page.
Frequently Asked Questions
Does the B2-XF2-A navigate autonomously?
Yes. Models designated XF2 include the Laser SLAM kit for autonomous navigation, whereas XF1 models, and F2 models without the D, are delivered without SLAM navigation.
How high a step can the robot climb?
The robot ascends and descends steps up to a maximum height of 40cm facing front. It keeps excellent stability and balance on fire stairs.
What can the water cannon do?
The water cannon has a pitching range of 5 - 85° with a body-compensated angle, a water flow rate of 40L/s and a firing range of 60m. It can be used with both water and foam.
Are the payloads included in the delivery?
The payloads shown in Unitree's material are not included in the scope of delivery. Robots Europa states the exact equipment of each unit in the quotation.
How does the robot cope with heat?
A drencher system keeps the robot operating in high-temperature environments without being affected by the heat. The composite metal body is wear-resistant, dust-proof and waterproof.
Which battery is supplied, and can it be changed in the field?
The robot is supplied with one Unitree B2 Battery (45 Ah / 2250 Wh). The battery can be replaced quickly while the robot stays watertight.
Where can I buy the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A) and what does it cost?
You can buy it from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on the configuration and services you choose, and you receive a tailored quotation after submitting your requirements.
Summary
Fire appliances bring water, people and equipment to the kerb. The hardest metres are the ones beyond it, up the stairs and into the smoke. The Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A) is built for those metres. It combines the proven B2 platform with a fire-hardened composite metal body, a drencher system, stronger joints and modular firefighting tools. Its XF2 designation adds Laser SLAM, which turns it from a remote-controlled machine into one that can map its way through a building. Robots Europa supplies it with delivery, customs and support arranged from Dublin. For any brigade or safety team assessing legged robots for the work beyond the kerb, this page is the starting point.
