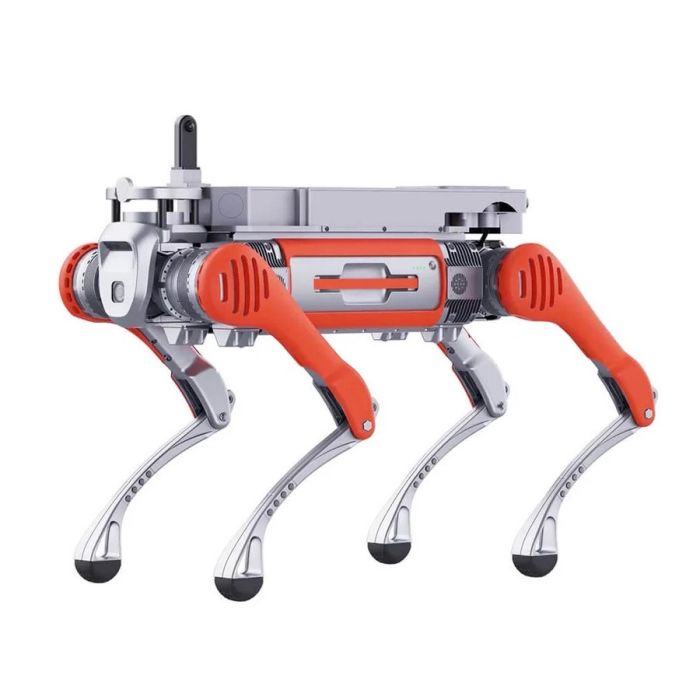

Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C)

A legged firefighting platform from Unitree that carries cameras and fire-suppression modules into smoke, heat and rubble ahead of the crew. Built for fire and rescue services across Europe that need eyes and reach in places where sending people first is too great a risk.

In stock

BRAND:
UNITREE ROBOTICS
PART #:
B2-XF2-C
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Unitree-B2-XF2-C

Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C)

A fire stair is designed for people hurrying down it, not for a machine climbing up it into smoke. Yet the stairwell, the basement corridor and the collapsed outbuilding are precisely where an incident commander most wants live pictures before committing a crew. The Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C) is built around that gap: a legged platform that takes stairs facing forward, carries mission modules into heat and spray, and sends video back to the people making decisions outside.

Robots Europa, based in Dublin, supplies this configuration to fire and rescue services, industrial safety teams and integrators throughout the European Union and the DACH region. Robots Europa prepares the quotation, arranges delivery to your site and provides the after-sales support, so that one contact handles the procurement from first enquiry to commissioning.

Background

Unitree Robotics and the B2 line

Unitree Robotics is one of the best-known manufacturers of legged robots, with a portfolio that runs from compact quadrupeds for education and research to heavier industrial machines. The B2 family represents the industrial end of that range: robots intended for inspection, security and emergency work, where the platform has to tolerate dirt, water and long working days rather than a laboratory floor. You can compare the wider family in the Unitree B2 category.

A rescue platform built on modules

The Fire Rescue series is the B2 adapted for one industry. It is deeply integrated into fire rescue applications, and its central idea is modularity: the series supports modular functions and replacements, so one legged chassis can be equipped as an inspection robot dog, a water cannon robot dog or an air blower robot dog. Around those modules sit shared systems – a drencher system for operating in high temperatures, a visualisation platform for the command post and a battery that can be swapped quickly without compromising water-tightness. The XF2 designation in this model's name identifies a version supplied with the Laser SLAM kit for autonomous navigation.

Technical Specifications

SpecificationValue
Maximum step height, facing front (Fire Rescue series)40cm
Joint performance (inspection robot dog)Increased by 170%
Body material (Fire Rescue series)Composite metal; wear-resistant, high mechanical strength, dust-proof and waterproof
Navigation (XF2 / F2D versions)Laser SLAM kit for autonomous navigation
Water cannon pitch range, body-compensated (water cannon robot dog)5 - 85°
Water cannon flow rate (water cannon robot dog)40L/s
Water cannon firing range (water cannon robot dog)60m
Extinguishing media (water cannon robot dog)Water and foam
Battery (Fire Rescue series)Quick replacement while maintaining water-tightness

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

Unitree has not published the weight, the payload, the maximum speed or the IP rating of the fire rescue version, nor the model of the gas sensor or the specifications of the remote controller; Robots Europa confirms these at quotation.

What does the XF2 designation add to the B2 Fire Rescue robot?

Within the Fire Rescue series, the model code tells you how the robot finds its way. Models designated XF2 or F2D include the Laser SLAM kit for autonomous navigation, while models designated XF1 or F2 (without the D) are delivered without SLAM navigation. The B2-XF2-C therefore belongs to the navigation-equipped group.

In practical terms, SLAM – simultaneous localisation and mapping – allows a robot to build a map of its surroundings while tracking its own position within it. For a fire service, that matters most in spaces where an operator's view through the camera is limited by smoke, or where the robot is working at a distance from the command vehicle. A version without SLAM is driven entirely by the operator; a version with it adds the option of autonomous movement through a mapped area. Which navigation behaviour a particular deployment needs is a question worth settling before ordering, and Robots Europa can discuss it with you as part of the quotation.

The letter after XF2 distinguishes this configuration from its siblings in the series, so the full code is worth quoting exactly when you make an enquiry.

How does the B2 Fire Rescue robot cope with heat, water and stairs?

Three design choices address the conditions a rescue robot actually meets. The first is the body: a composite metal construction that is wear-resistant, mechanically strong, dust-proof and waterproof, chosen specifically to cope with harsh environments. The second is the drencher system, which lets the robot continue operating in high-temperature environments without being affected by the heat, and so improves fire-extinguishing efficiency.

The third is mobility. Facing forward, the robot ascends and descends steps up to 40cm high, with excellent stability and balance on fire stairs in particular. That is the terrain where wheeled and tracked machines most often stall, and where a legged platform earns its place. Joint performance on the inspection robot dog has been increased by 170%, which underlines how far the drive system has been developed for demanding duty.

Endurance in the field depends as much on logistics as on hardware. Because the battery can be replaced quickly while the robot stays watertight, a crew can return a unit to work after a short pause instead of waiting for a recharge, which improves both rescue efficiency and safety.

Who is the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C) for?

The first audience is municipal and regional fire and rescue services that want reconnaissance ahead of a crew: a robot that walks into a smoke-logged building and relays clear video so the incident commander can plan an entry with information rather than guesswork. Industrial fire brigades at chemical plants, energy sites, tunnels and logistics centres form a second group, since their sites combine stairs, gantries and hazards where sending people first carries a high cost.

Forestry and wildland fire organisations form a third segment, because the Fire Rescue series includes an air blower robot dog that extinguishes forest fires with high-speed airflow. Training academies, research institutes and system integrators who build response concepts around robotic platforms make up a fourth.

The series is offered in several XF2 configurations, each listed separately: Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-A), Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-B), Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-D) and Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-E). If your requirement centres on a particular module – inspection, water cannon or air blower – Robots Europa will advise you on which configuration carries it, so that you compare like with like.

What is the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C) used for?

  1. Interior reconnaissance: walking into smoke-filled buildings to send video back before a crew enters.
  2. Stairwell access: climbing fire stairs facing forward to reach upper or lower floors.
  3. Command support: feeding the visualisation platform that recreates the scene for rescue decision-making.
  4. Fire suppression: carrying a mission module such as the water cannon, which handles both water and foam.
  5. Wildland firefighting: working with the air blower module to tackle forest fires through high-speed airflow.
  6. Mapped site operations: using the Laser SLAM kit to navigate autonomously through industrial or tunnel environments.

Pricing and Availability

Robots Europa supplies the B2-XF2-C on the basis of a written quotation, prepared for your configuration, your module requirements and your delivery location within the EU or the DACH region. Delivery, customs and support are arranged together with the quotation, so the offer you receive reflects the complete scope of supply. This allows you to check the robot against your operational requirements before ordering. The request form for a quotation is available on this page.

Frequently Asked Questions

Does the B2-XF2-C navigate autonomously?

Yes. Models designated XF2 include the Laser SLAM kit for autonomous navigation, whereas XF1 models are delivered without SLAM navigation.

Can the robot climb stairs?

Yes. Facing forward, it ascends and descends steps up to 40cm high, and it remains stable and balanced on fire stairs.

How does it work in high temperatures?

The Fire Rescue series uses a drencher system that allows the robot to keep operating in high-temperature environments without being affected by the heat.

Which mission modules does the Fire Rescue series support?

The series supports modular functions and replacements, with inspection, water cannon and air blower versions. Robots Europa can advise you on the module that suits your deployment.

Is the robot body protected against water and dust?

Yes. The body is made of a composite metal material that is wear-resistant, mechanically strong, dust-proof and waterproof.

Can the battery be changed in the field?

Yes. The battery can be replaced quickly while the robot remains watertight, which shortens downtime during an operation.

Where can I buy the Unitree B2 Fire Rescue Quadruped Robot Dog (B2-XF2-C) and what does it cost?

You can buy it from Robots Europa, which supplies customers across the EU and the DACH region. The cost depends on configuration, module and delivery, and is set out in an individual quotation that you can request on this page.

Summary

The stairwell that no wheeled machine can climb and no crew should enter blind is the problem this robot was designed to solve. The B2-XF2-C combines a legged chassis that takes fire stairs facing forward, a composite metal body, a drencher system for heat, quick watertight battery changes and a Laser SLAM kit for autonomous navigation, all within a modular series that can carry inspection, water cannon or air blower equipment. For services that want reliable information and reach before people go in, this page is the starting point.

Specifications

General

BRAND UNITREE ROBOTICS
PART # B2-XF2-C
ROBOT TYPE QUADRUPED
ROBOT USE FIREFIGHTING
FCC APPROVED Yes
FCC ID 2A5PE-YUSHU006

What's included

Unitree B2-Xf2-C (B2-XF2-C)
